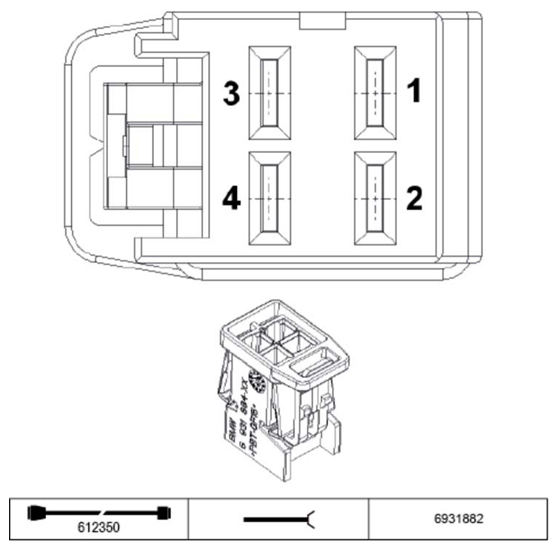

Roof Functions Module, High Variant A21*5B Connector End View
Pin Assignments At Plug Connector A21*5B
| Pin | Type | Description /Signal type | Connection /Measuring information |
|---|---|---|---|
| 1 | A | Activation Sunroof shade drive | Sunroof shade drive |
| 2 | A | Activation Slide/tilt sunroof drive unit | Slide/tilt sunroof drive unit |
| 3 | A | Activation Sunroof shade drive | Sunroof shade drive |
| 4 | A | Activation Slide/tilt sunroof drive unit | Slide/tilt sunroof drive unit |
