Instrument panel: Instrument panel
In the event of failure of the electromechanical power steering (EPS), a yellow Check Control symbol appears in the LC display. Simultaneously, the fixed indicator lamp lights up in the instrument cluster. The Check Control symbol has the following meaning: Steering behavior! Drive with care!

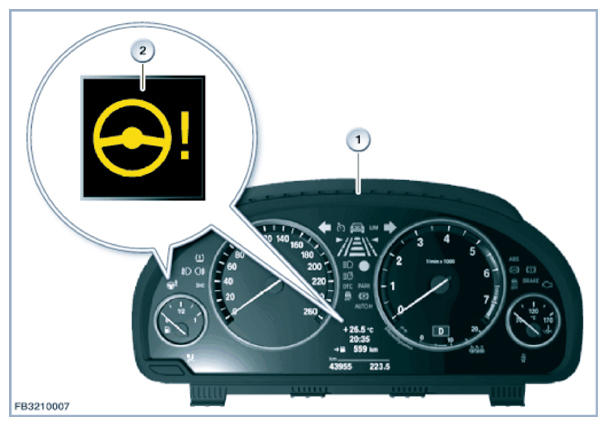

| Item | Explanation |
|---|---|
| 1 | Instrument panel |
| 2 | Indicator light and Check Control symbol |
Possible causes for the Check Control message lighting up can be:
- Fault in the EPS control unit, in an integrated sensor or in the servomotor
- EPS overheat protection
- Undervoltage or overvoltage
- Failure of external signals with influence on steering servo assistance
- Faulty or incomplete initialization of the steering (e.g. learning end stops)
