Structure and inner electrical connection
The rear-compartment controller (FCON) is connected to the K-CAN and vehicle electrical system by means of a 10-pin plug connection.
Each control panel (control panel, left, rear-compartment controller and control panel, right, rear-compartment controller) is connected by a 10-pin plug connection to the rear-compartment controller.
The locator lighting (terminal 58g) for the rear-compartment controller is controlled by the footwell module (FRM) via K-CAN. The rear-compartment controller is supplied with terminal 30B via the rear distribution box.

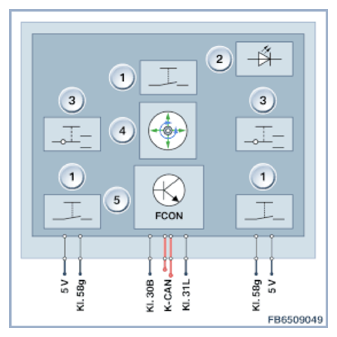

| Item | Explanation |
|---|---|
| 1 | Buttons (for selection of "Menu", "Back", "Option") |
| 2 | Locator lighting |
| 3 | Rocker switches (for selection of "Telephone" or "Navigation" and "CD/Multimedia" or "Radio") |
| 4 | Control button of the rear-compartment controller |
| 5 | Rear-compartment controller (FCON) |
Pin assignments
The graphic above shows only the supply and bus connection. The current pin assignment is recorded on the wiring diagrams in the ISTA diagnosis system (Integrated Service Technical Application). Click on the component code in the wiring diagram to activate the "Installation location" and "Pin assignment" tabs.
