Functional description
The engine ventilation heating is required for countries with very low temperatures in the winter to prevent the ventilation line from "freezing". The flow into the differentiated air intake system can freeze at constant-speed driving and temperatures below - 25 °C as well as in extreme short-distance driving. A heating element according to the PTC principle is used.

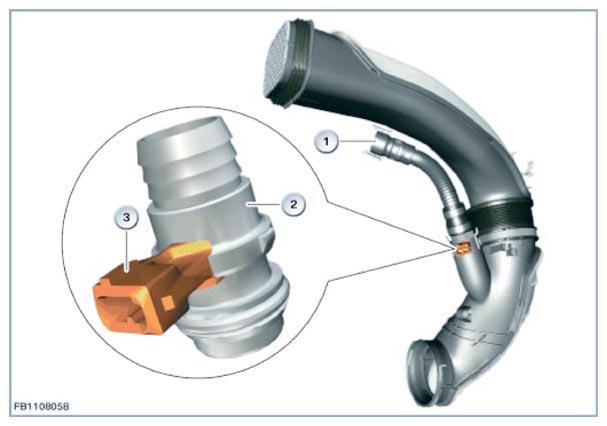

| Index | Explanation |
|---|---|
| 1 | Blow-by pipe at the clean air pipe |
| 2 | Engine ventilation heating |
| 3 | two-pin plug connection |
