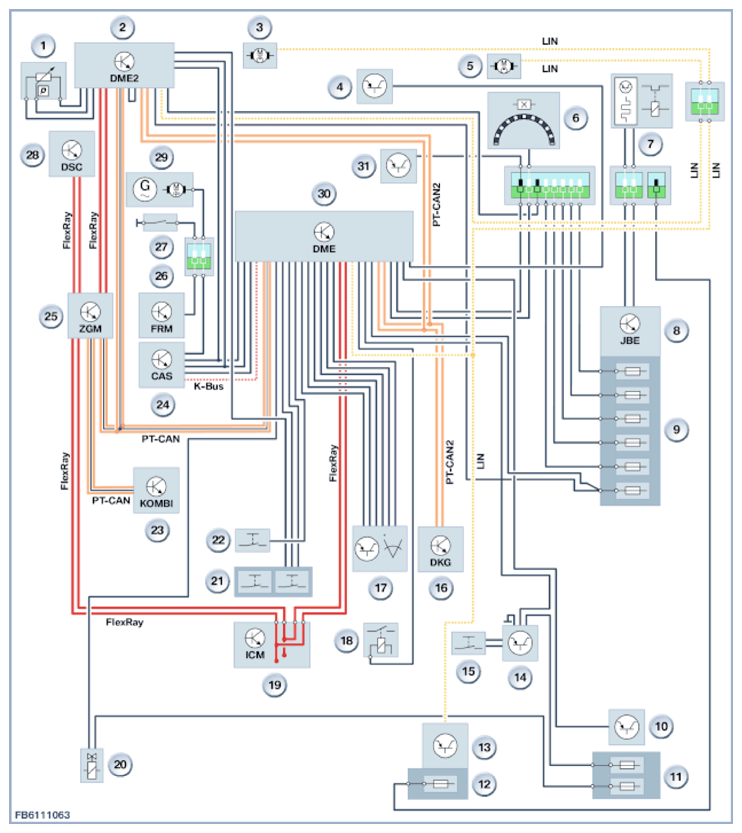

| 1 |
Fuel pressure sensor |
| 2 |
Digital Engine Electronics 2 (DME2) |
| 3 |
Electric auxiliary water pump 2 |
| 4 |
Electric fan |
| 5 |
Electric auxiliary water pump |
| 6 |
Gearbox input-speed sensor |
| 7 |
Air conditioning compressor |
| 8 |
Junction Box Electronics (JBE) |
| 9 |
Front fuse and relay module |
| 10 |
DC/DC converter |
| 11 |
Power distribution box, rear |
| 12 |
Power distribution box, battery |
| 13 |
Intelligent battery sensor |
| 14 |
Temperature sensor (NVLD, USA and Korea) |
| 15 |
Pressure switch (NVLD, USA and Korea) |
| 16 |
Twin-clutch gearbox (DKG) |
| 17 |
Accelerator pedal module |
| 18 |
Electric fan relays |
| 19 |
Integrated chassis management (ICM) |
| 20 |
Exhaust flap |
| 21 |
Center console operating facility |
| 22 |
Clutch switch |
| 23 |
Instrument panel (KOMBI) |
| 24 |
Car access system (CAS) |
| 25 |
Central gateway module (ZGM) |
| 26 |
Footwell module (FRM) |
| 27 |
Reversing light switch |
| 28 |
Dynamic stability control (DSC) |
| 29 |
Starter motor |
| 30 |
Digital engine electronics |
| 31 |
Oil condition sensor |
