Air mass deviations

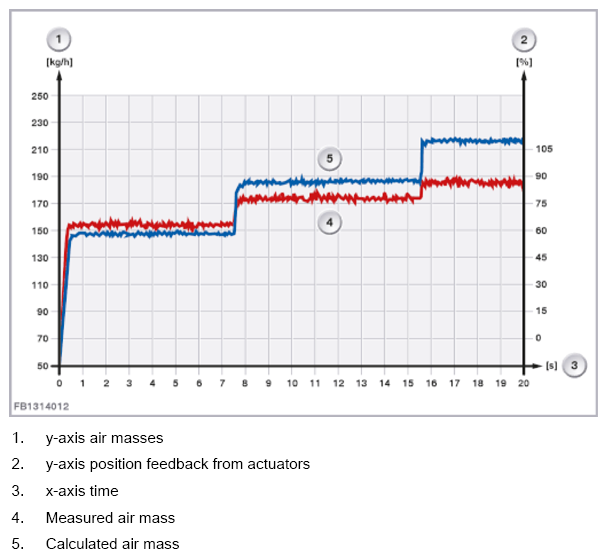

Fig 1: Air Mass Deviations Graph
G09908286Courtesy of BMW OF NORTH AMERICA, INC.
  1. y-axis air masses
  2. y-axis position feedback from actuators
  3. x-axis time
  4. Measured air mass
  5. Calculated air mass
