JBE: Junction Box Electronics
The JBE processes the signals from the power window switches in the rear doors and also the power window switch in the front passenger door.
The JBE electrically activates the rear power window regulators.

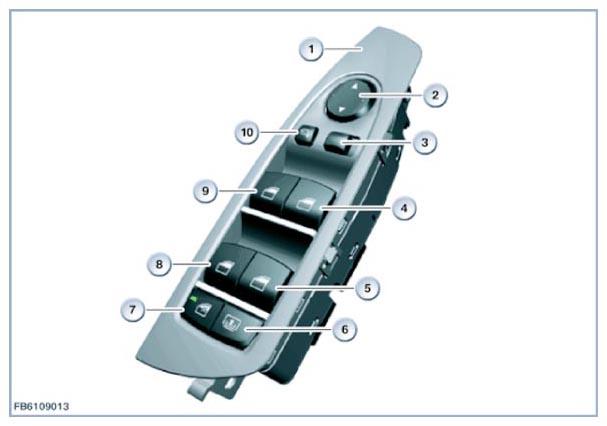

F01 shown
| Item | Explanation |
|---|---|
| 1 | Driver's door switch block |
| 2 | Switch for exterior mirror adjustment |
| 3 | Selector switch for exterior mirror on left or right |
| 4 | Button for power windows in the front door on the right |
| 5 | Button for power windows in the rear door on the right |
| 6 | Button for roller sunblind |
| 7 | Child safety lock switch with function indicator light |
| 8 | Button for power windows in the rear door on the left |
| 9 | Button for power windows in the front door on the left |
| 10 | Button for folding in the exterior mirror (only with exterior mirrors in High version) |
