41 00... Repair Solution For Straight Shank/Hexagon Rivet Nut

Protective measures!

• Wear safety goggles
• Wear protective gloves

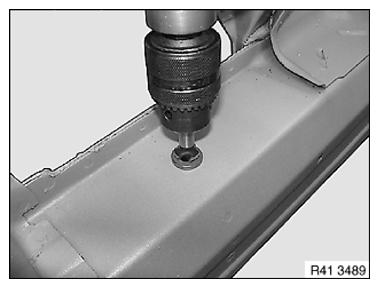

1. 1. Carefully spot-drill rivet head with a larger drill bit/countersink
   Fig 1: Drilling Out Rivet Head

   Courtesy of BMW OF NORTH AMERICA, INC.
   IMPORTANT: Avoid paint damage

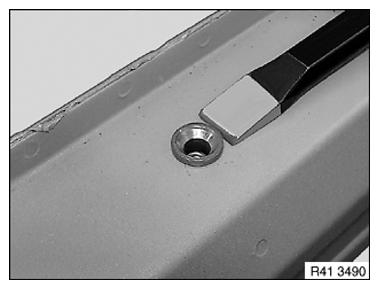

2. 2. Knock rivet head away with a chisel
   Fig 2: Removing Rivet Head Away With Chisel

   Courtesy of BMW OF NORTH AMERICA, INC.

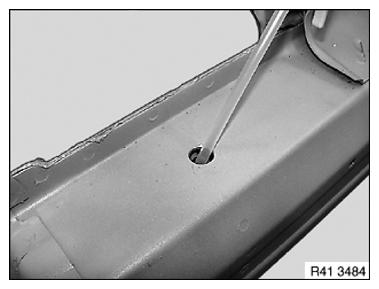

3. 3. Punch through rivet shank into cavity, remove if necessary
   Fig 3: Identifying Punch Through Rivet Shank Into Cavity

   Courtesy of BMW OF NORTH AMERICA, INC.

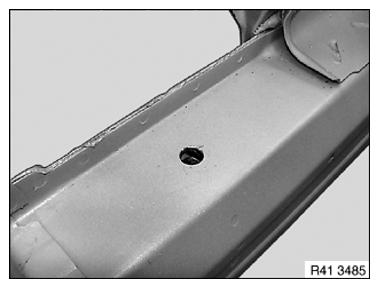

4. 4. Clean component, eliminate paint damage if necessary
   Fig 4: Identifying Paintwork Damage Area

   Courtesy of BMW OF NORTH AMERICA, INC.

   If the rivet shank can be removed:

   IMPORTANT: To avoid corrosion, stop chips/swarf by means of cavity preservation.

   Follow NOTES ON CORROSION PROTECTION .

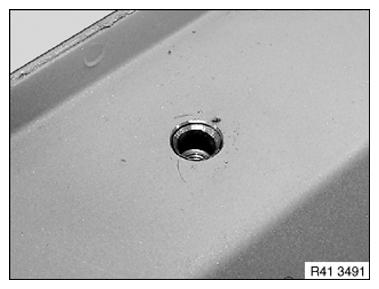

5. 5. Preserving cavity
   Fig 5: Preserving Cavity

   Courtesy of BMW OF NORTH AMERICA, INC.

   If the rivet shank cannot be removed:

   WARNING: Danger of injury!
   Observe NOTES ON CAVITY FOAM .
   IMPORTANT: To avoid corrosion and rattling noises, stop chips/swarf and rivet nut shank with cavity foam.
   Remove foam remnants with isohexane (benzine).
   Fig 6: Preserving Cavity

   Courtesy of BMW OF NORTH AMERICA, INC.
6. 5. Stop rivet shank by means of specific foaming
7. 6. Set rivet nut with hand rivet gun
   NOTE: Fit rivet nut as quickly as possibly, ideally before the cavity foam hardens.

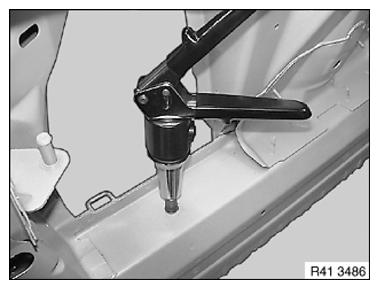

Hexagon/straight shank rivet nut (up to thread M8) with hand rivet gun ZS308

Make sure rivet nut correctly contacts component.

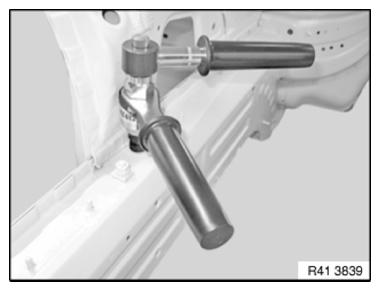

Hexagon/straight shank rivet nut (up to thread M12) with hand rivet gun MB512
