61 31 198 Replace controller chrome ring

Special tools required:

Lever out "OPTION", "BACK", "MENU" buttons with special tool 00 9 340 .

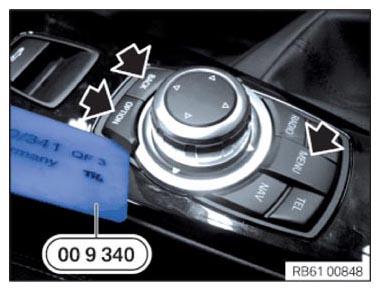

Fig 1: Locating Controller Buttons

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out chrome ring (1) from latch mechanisms with special tool 00 9 340 and remove upwards.

Installation note:

Retaining lugs on controller must not be damaged.

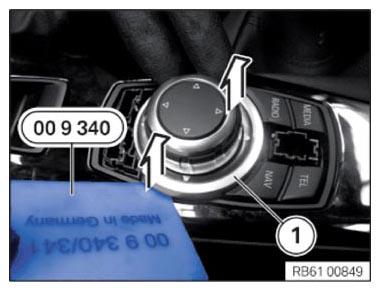

Fig 2: Levering Out Chrome Ring From Latch Mechanisms With Special Tool (00 9 340)

Courtesy of BMW OF NORTH AMERICA, INC.

Check function of the controller.
