61 13 250 Removing and installing (replacing) dividing element for integral active steering

Necessary preliminary work:

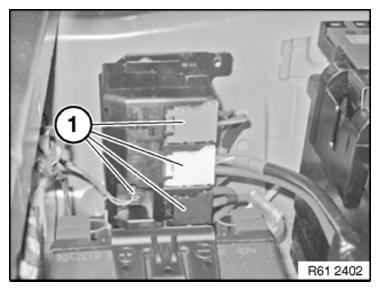

Unlock plug connections (1) and disconnect.

Fig 1: Identifying Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

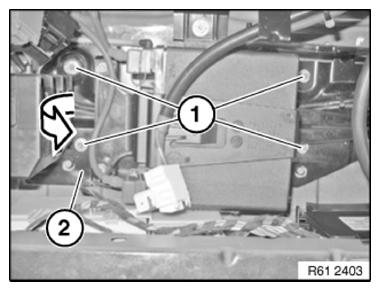

Unscrew nuts (1).

Tightening torque 61 21 9AZ .

Lift holder (2) in direction of arrow.

Installation note:

Make sure holders (2) are correctly seated.

Fig 2: Lifting Holder And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

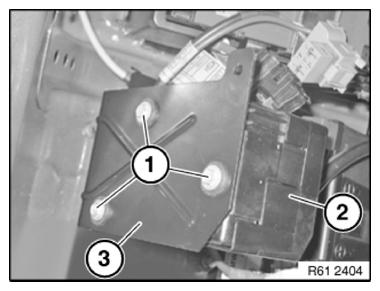

Release screws (1) and remove dividing element (2) from holder (3).

Installation note:

Make sure dividing element (2) is correctly seated.

Fig 3: Identifying Dividing Element, Holder And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
