41 00 505 Checking Front Body Structure

Necessary preliminary tasks:

Structural damage can be identified by measuring with a beam trammel.

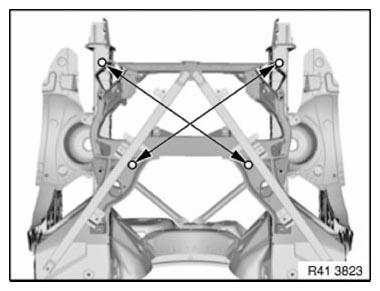

Here, symmetrically arranged points on the vehicle are measured in diagonal sequence.

If the two measured values are identical, there is no damage to the vehicle.

Fig 1: Measuring Symmetrically Arranged Points In Diagonal Sequence On Vehicle

Courtesy of BMW OF NORTH AMERICA, INC.

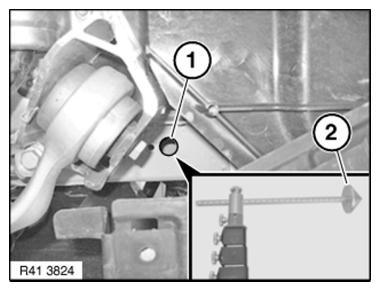

In front area use conical adapter (2) at bore hole (1).

Fig 2: Identifying Conical Adapter And Bore Hole

Courtesy of BMW OF NORTH AMERICA, INC.

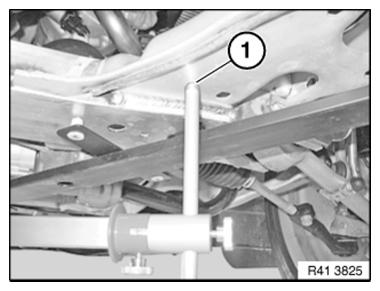

Use 8 mm dia. bore hole (1) on front axle support.

Fig 3: Identifying Bore Hole On Front Axle Support

Courtesy of BMW OF NORTH AMERICA, INC.
