41 00... Frame Alignment Control Body Dimensions

Dimensions in mm.

Measurement tolerances:

• ≤ 1000 mm ± 1 mm
• ≥ 1000 mm ± 2 mm

The control points shown serve to check the body and the straightening attachment.

Under Body View 1

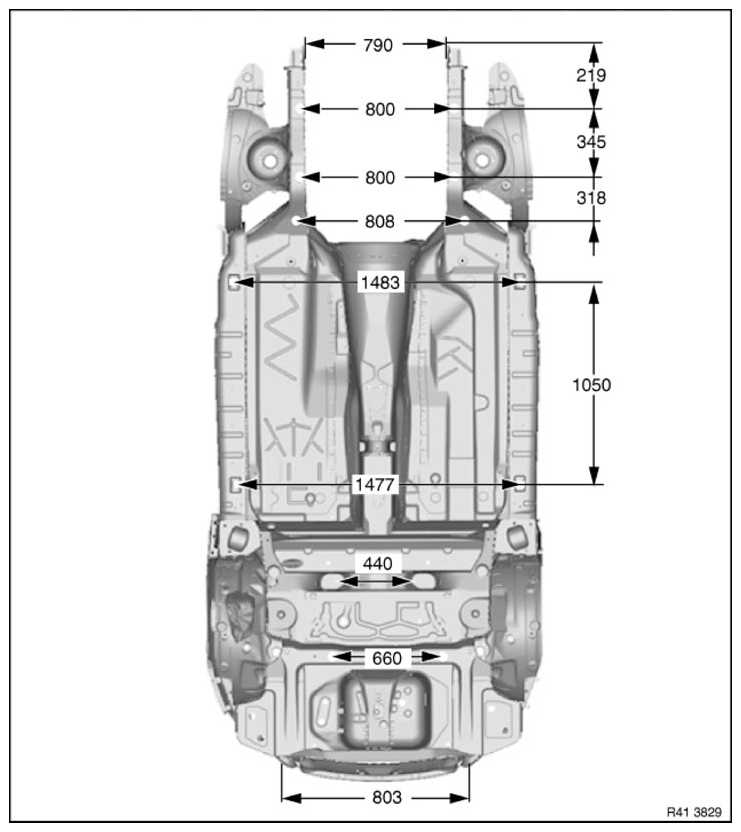

Fig 1: Under Body Frame Alignment Dimensions And Measurement Points (Under Body View 1)

Courtesy of BMW OF NORTH AMERICA, INC.

Under Body View 2

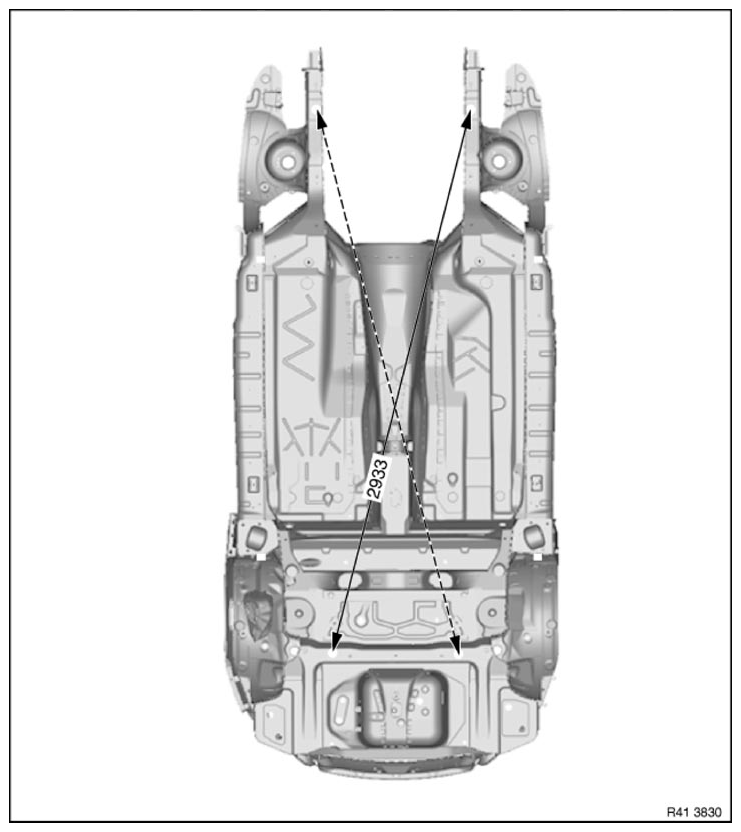

Fig 2: Under Body Frame Alignment Dimensions And Measurement Points (Under Body View 2)

Courtesy of BMW OF NORTH AMERICA, INC.

Top View, Front End

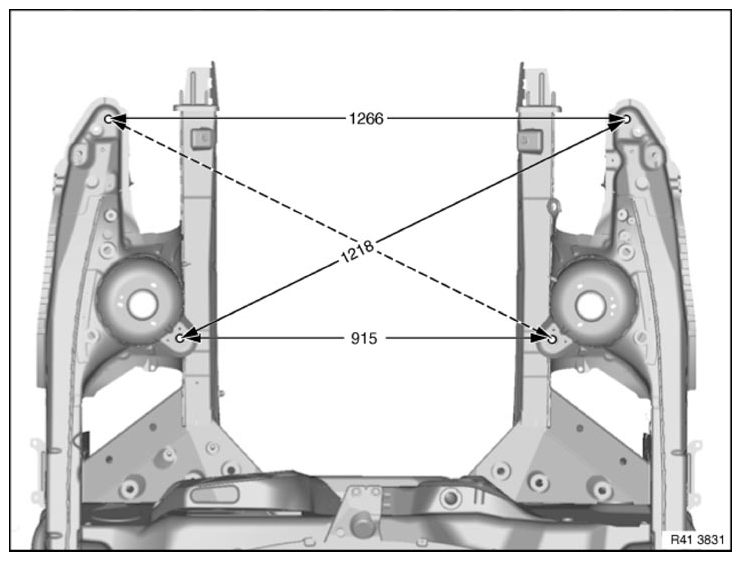

Fig 3: Engine Compartment Frame Alignment Dimensions And Measurement Points (Top View, Front End)

Courtesy of BMW OF NORTH AMERICA, INC.
