61 13... Circular connector, 20-pin, system D2.5

Special tools required:

• 61 0 303

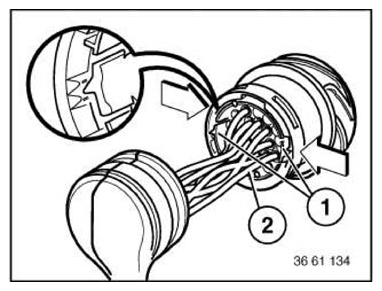

Carefully press back retaining tabs (1) of internal connector (2).

Fig 1: Pressing Internal Connector Retaining Tabs

Courtesy of BMW OF NORTH AMERICA, INC.

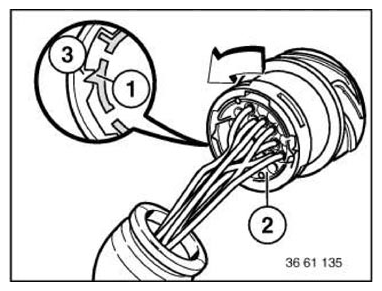

Turn internal connector (2) until retaining lugs (1) snap into release groove (3).

Fig 2: Turning Internal Connector

Courtesy of BMW OF NORTH AMERICA, INC.

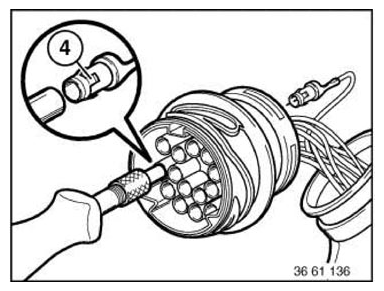

With special tool 61 0 303 press down retaining hook (4) of corresponding contact and pull out cable.

Fig 3: Pressing Retaining Hook Using Special Tool (61 0 303)

Courtesy of BMW OF NORTH AMERICA, INC.
