41 35 575 Removing And Installing/Replacing Front Left Side Panel Module Carrier

Necessary preliminary work:

• Remove front side panel
• Remove AIRBAG SENSOR .

Release screws (1).

Tightening torque 41 35 10AZ .

Slacken nut (2).

Tightening torque 41 35 11AZ .

Remove module carrier.

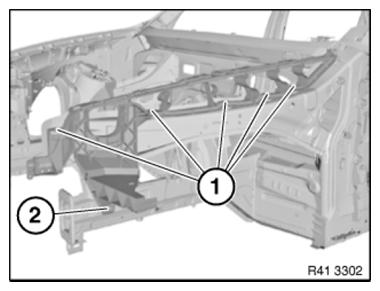

Fig 1: Identifying Front Side Panel Screws And Nut

Courtesy of BMW OF NORTH AMERICA, INC.
