Check Control Message Displayed For Variable Damper Control (VDC) (37 04 14)

CHECK CONTROL MESSAGE DISPLAYED FOR VARIABLE DAMPER CONTROL (VDC)

TECHNICAL SERVICE BULLETIN

SUBJECT

Check Control Message Displayed for Variable Damper Control (VDC)

SITUATION

Check Control message: "Driving comfort restricted, continue driving at a moderate speed, and have it checked by your BMW Center". Check Control ID 180 active for variable damper control (VDC).

CAUSE

The VDC control unit detects that the wheel acceleration sensor is faulty (fault code memory entry: Value implausible).

Possible fault code memory entry:

1. 482943 - Wheel acceleration sensor - front left - sensor 1 - - value - implausible
2. 482947 - Wheel acceleration sensor - front right - sensor 2 - - value - implausible
3. 48294B - Wheel acceleration sensor - rear left - sensor 3 - - value - implausible
4. 48294F - Wheel acceleration sensor - rear right - sensor 4 - - value - implausible

CORRECTION

Perform the vehicle test and read the VDC fault code memory. If any of the VDC relevant fault codes are present, replace the wheel acceleration sensors as follows:

Fault codes are present for the front axle:

1. 482943 - Wheel acceleration sensor - front left - sensor 1 - value - implausible, and/or
2. 482947 - Wheel acceleration sensor - front right - sensor 2 - value - implausible,

Then:

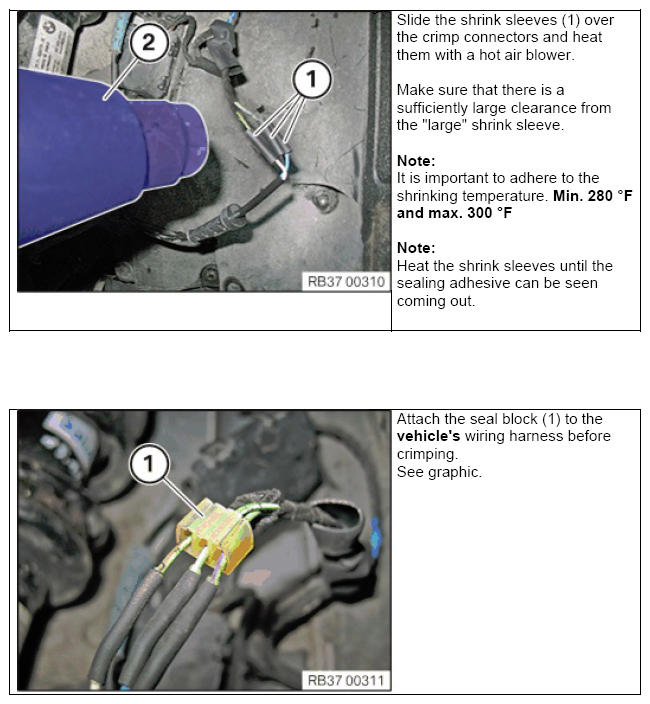

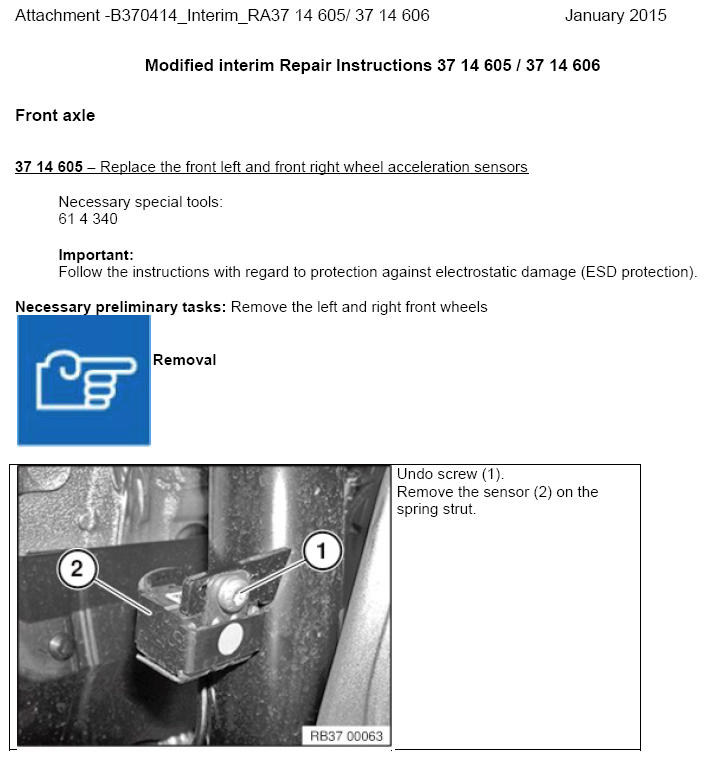

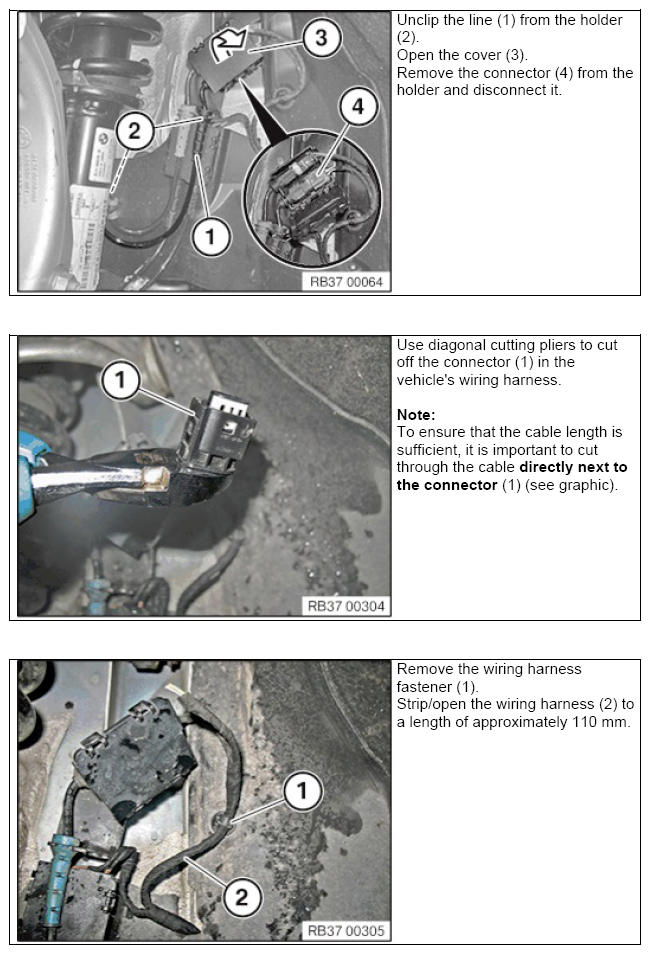

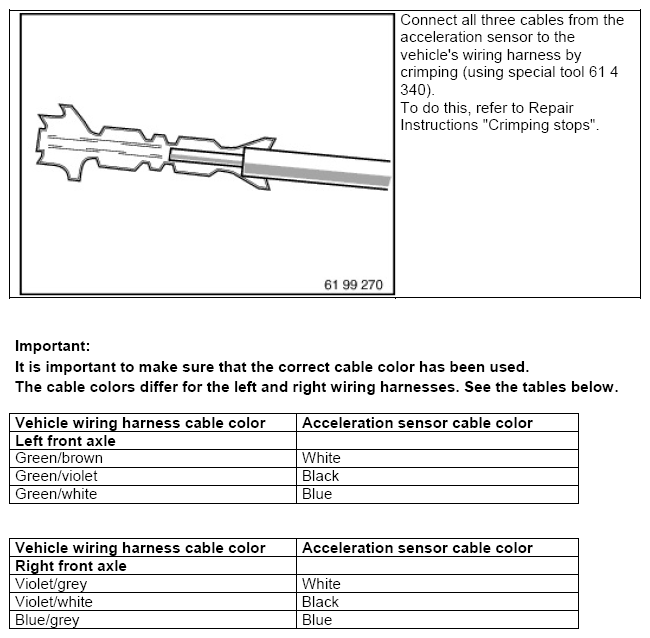

Replace both  wheel acceleration sensors on the front axle  , as per attached "B370214_Interim_RA37 14 605/37 14 606" instructions.

Fault codes are present for the rear axle:

1. 48294B - Wheel acceleration sensor - rear left - sensor 3 - value - implausible, and/or
2. 48294F - Wheel acceleration sensor - rear right - sensor 4 - value - implausible,

Then:

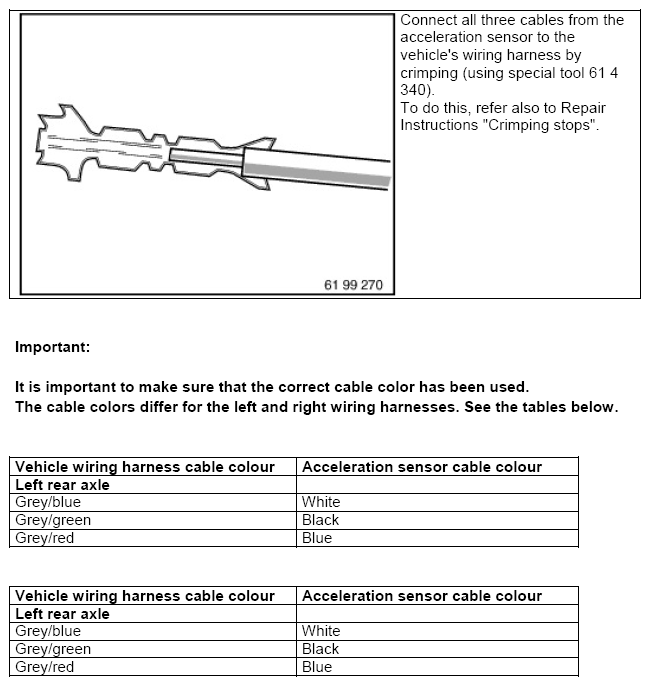

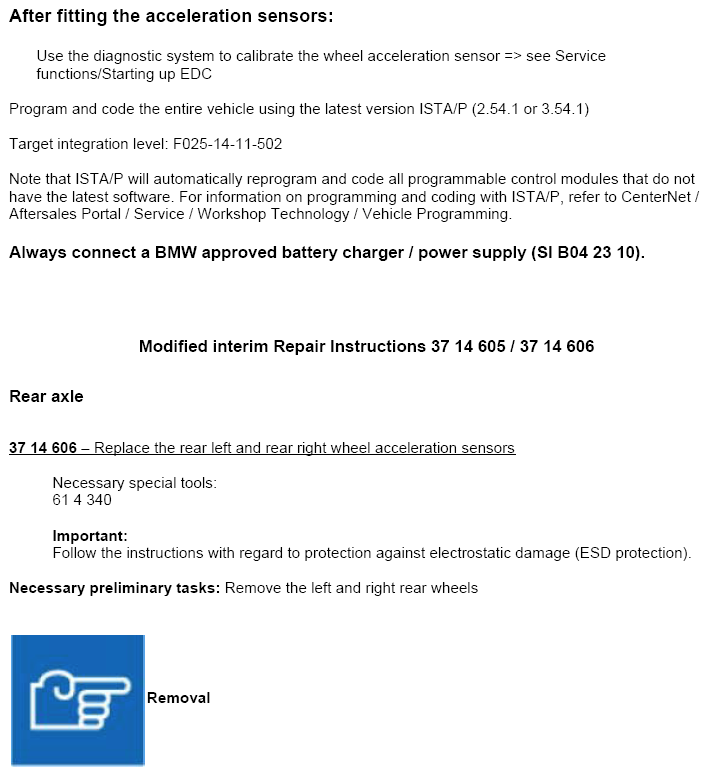

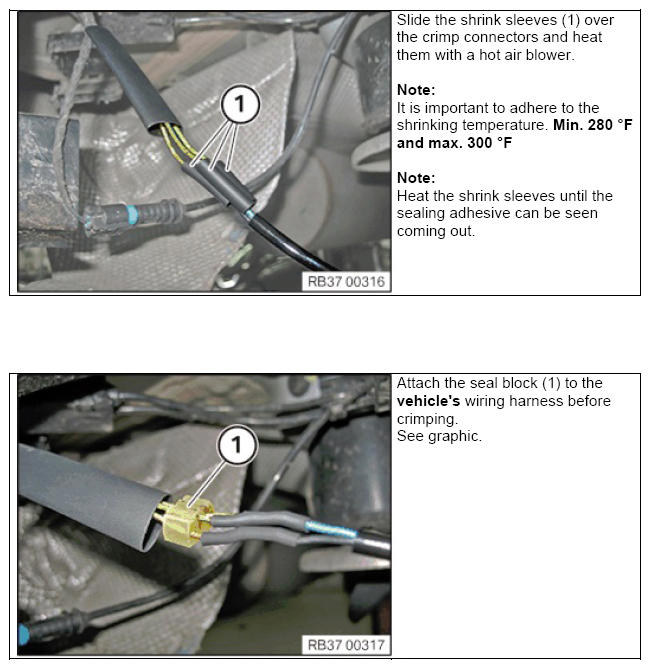

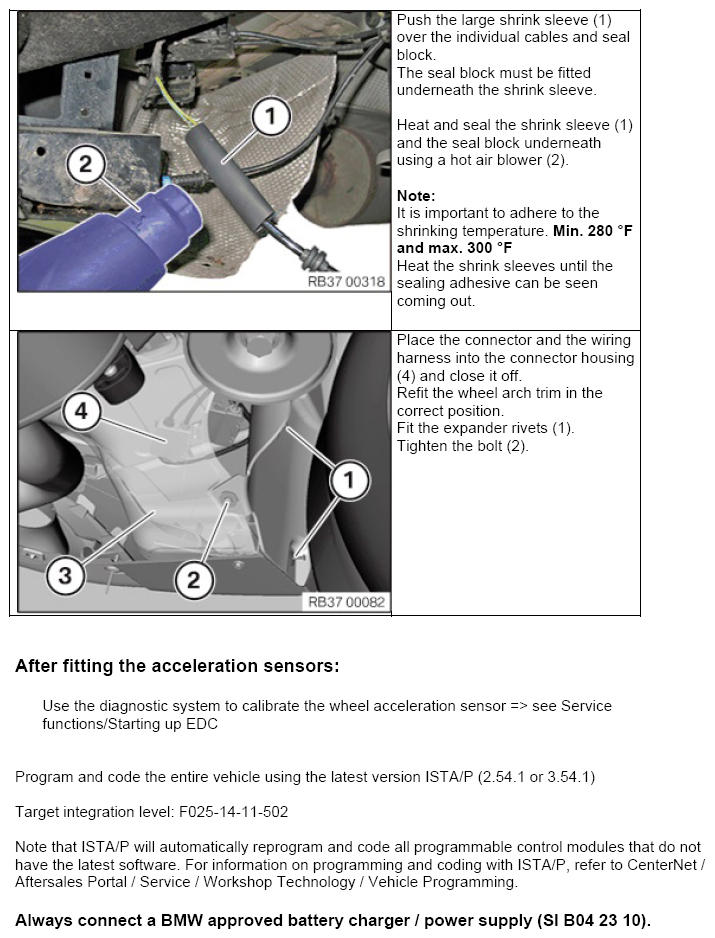

Replace ALL  wheel acceleration sensors on the front and rear axles,  as per attached "B370214_Interim_RA37 14 605/37 14 606" instructions.

PARTS INFORMATION

Part Number	Description	Quantity
	Depending on fault code memory entry. NOTE: rear axle fault code requires both kits.
37 14 6 875 051	Front axle acceleration sensor kit	1
37 14 6 875 052	Rear axle acceleration sensor kit	1

WARRANTY INFORMATION

Covered under the terms of the BMW New Vehicle/SAV Limited Warranty or the BMW Certified Pre-Owned Program.

Defect Code:

37 14 11 14 00

Labor Operation:	Labor Allowance:	Description:
37 99 000	8 FRU	Work time to read the fault code memory and program the vehicle (includes connecting an approved battery charger/power supply and performing a vehicle test)
Or:
37 99 000	25 FRU	Work time to read the fault code memory, replace both wheel acceleration sensors on the front axle and program the vehicle (includes connecting an approved battery charger/power supply and performing a vehicle test)
Or:
37 99 000	41 FRU	Work time to read the fault code memory, replace all wheel acceleration sensors and program the vehicle (includes connecting an approved battery charger/power supply and performing a vehicle test)

Work time labor operation code 37 99 000, as listed above, is a Plus labor operation.

If a vehicle control module or component was working properly and/or had no related faults stored prior to vehicle programming and it fails to program correctly and/or requires initialization, this additional work must be claimed with separate labor operations under the defect code listed above, refer to KSD2.

Repairs to address control modules and/or components with pre-existing conditions are not eligible to be claimed under the defect code listed in this bulletin.

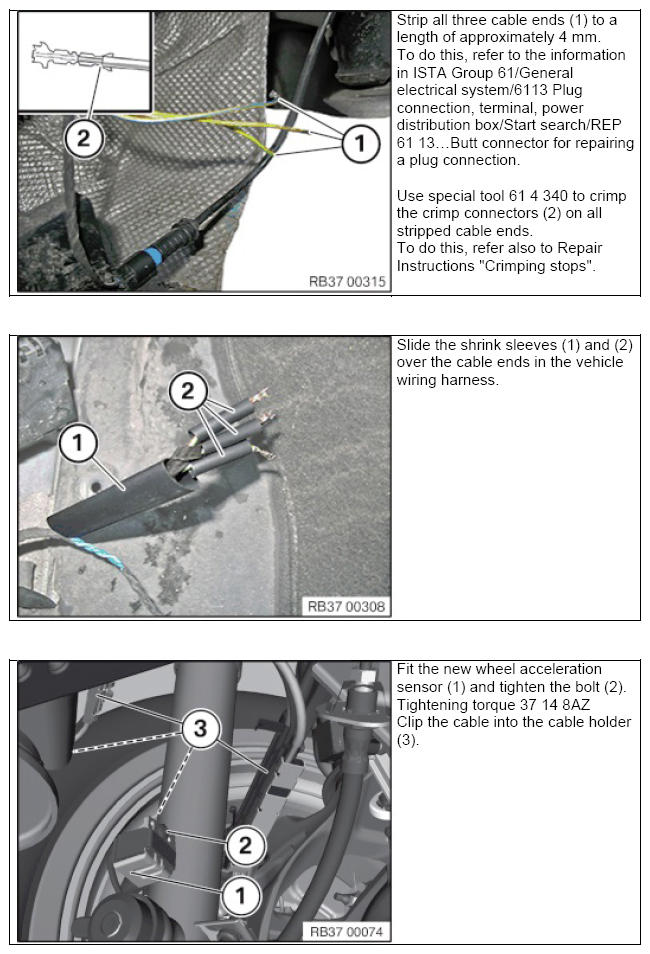

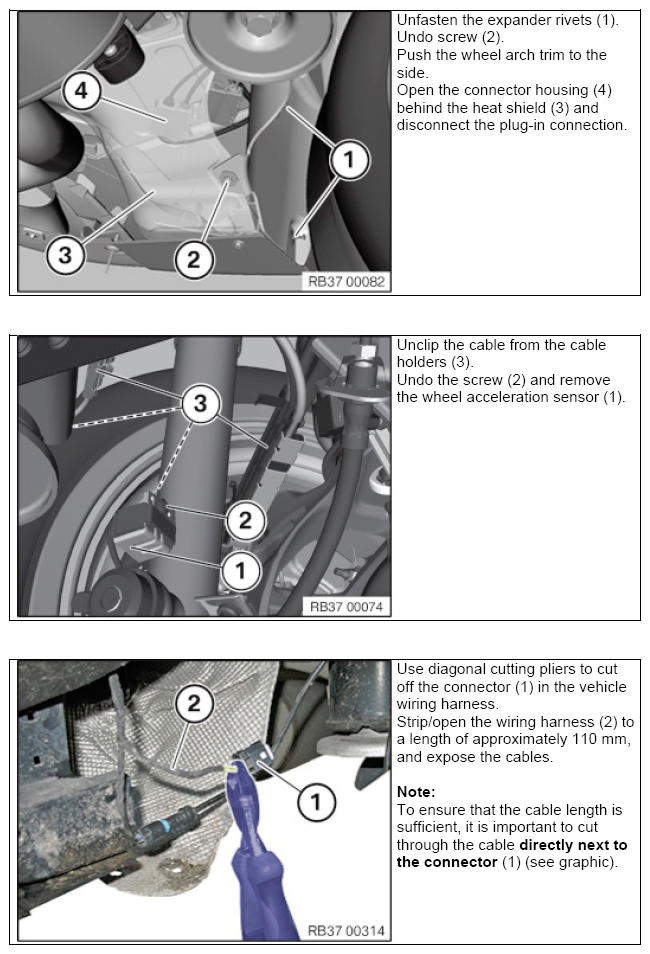

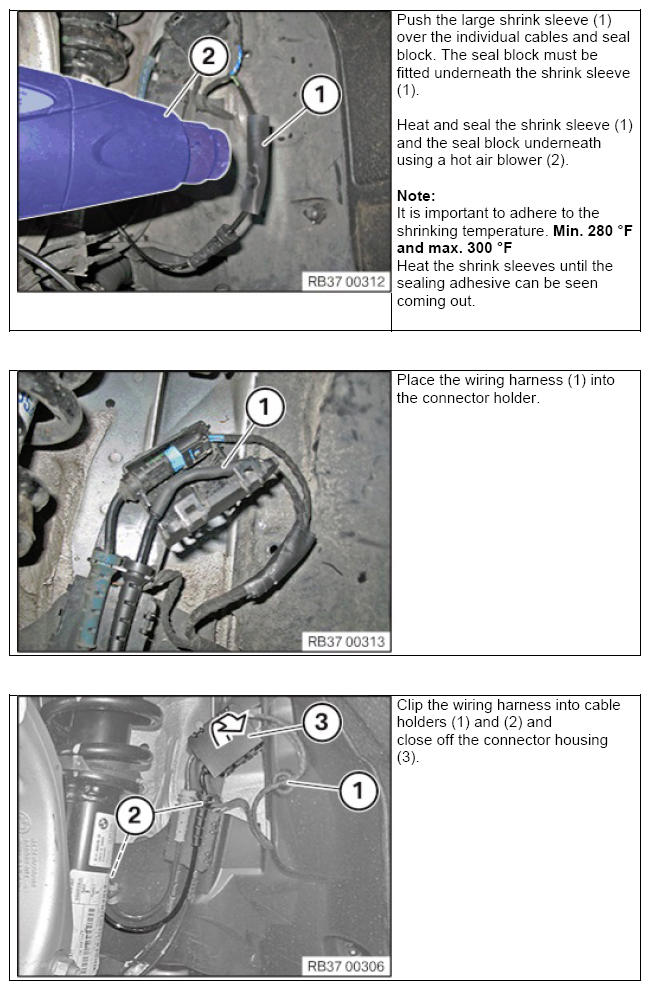

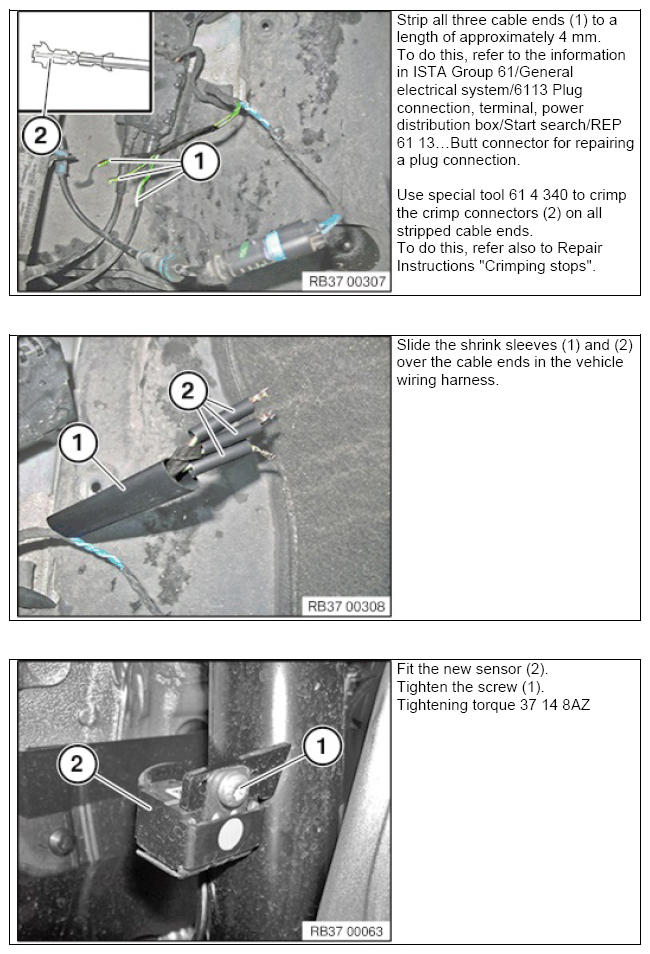

ATTACHMENTS
