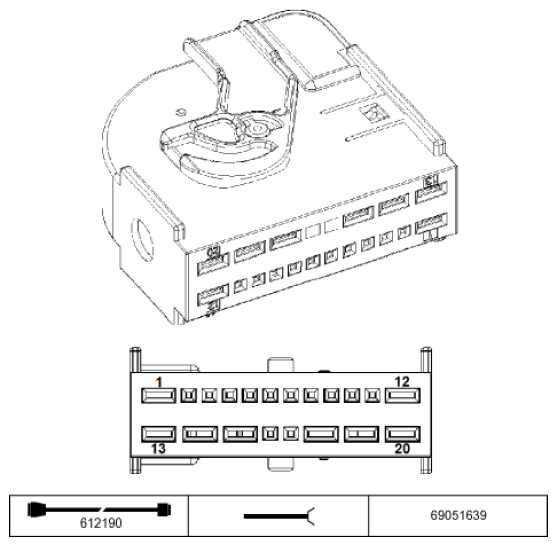

Pressurised Fuel Tank Control Module A281*2B Connector End View

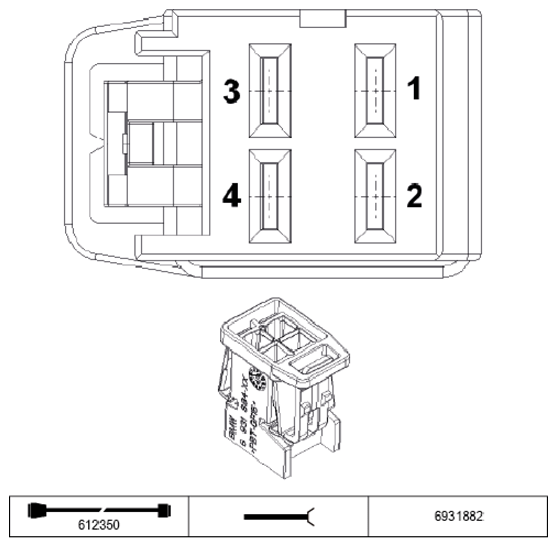

Courtesy of BMW OF NORTH AMERICA, INC. Pin Assignments At Plug Connector A281*2B
| Pin |
Type |
Description /Signal type |
Connection /Measuring information |
| 1 |
A |
Activation |
Servodrive for fuel filler flap |
| 2 |
-- |
Not used |
|
| 3 |
A |
Activation |
Servodrive for fuel filler flap |
| 4 |
-- |
Not used |
|
