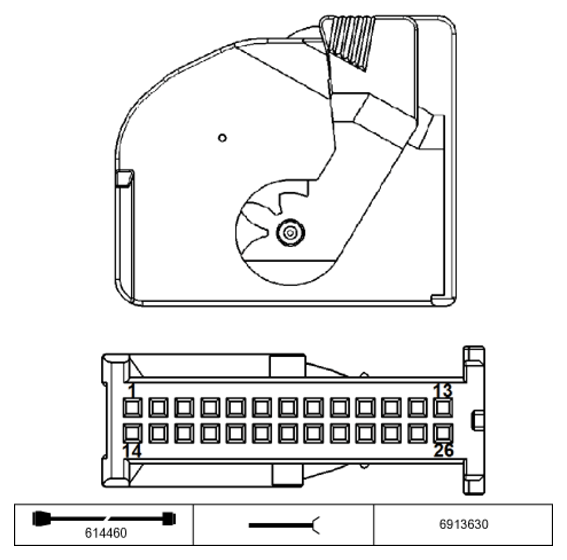

Footwell Module A58*1B Connector End View
Pin Assignments At Plug Connector A58*1B
| Pin | Type | Description /Signal type | Connection /Measuring information |
|---|---|---|---|
| 1 | -- | Not used | |
| 2 | -- | Not used | |
| 3 | E | Redundancy, turn signal/high beam | Steering column switch cluster |
| 4 | -- | Not used | |
| 5 | E | Ground | Light switch unit |
| 6 | -- | Not used | |
| 7 | -- | Not used | |
| 8 | -- | Not used | |
| 9 | E/A | LIN bus signal | Operating unit, driver assistance systems |
| 10 | -- | Not used | |
| 11 | -- | Not used | |
| 12 | A | Activation, footwell light | Footwell light, front right |
| 13 | A | Activation, footwell light | Footwell light, front left |
| 14 | -- | Not used | |
| 15 | -- | Not used | |
| 16 | -- | Not used | |
| 17 | E/A | LIN bus signal | Light switch unit |
| 18 | E | Switch signal, hazard warning light switch | Central locking button hazard warning switch operating facility |
| 19 | -- | Not used | |
| 20 | A | LED activation | Central locking button hazard warning switch operating facility |
| 21 | A | Locator light and ambient light | Connector, locator light and ambient light |
| 22 | -- | Not used | |
| 23 | -- | Not used | |
| 24 | -- | Not used | |
| 25 | M | Ground | Central locking button hazard warning switch operating facility |
| 26 | M | as of 2011_09 Ground | Operating unit, driver assistance systems |
