61 13 050 Removing and installing/replacing power distribution box in passenger compartment

Necessary preliminary tasks:

• Clamp off BATTERY LEAD FROM NEGATIVE CONNECTION POINT
• Detach both battery cables for negative terminal in F03
• Remove RIGHT GLOVE BOX WITH HOUSING

Disconnect plug connection (1) from power distribution box in passenger compartment (3) and junction box electronics.

Unfasten screws (2).

Tightening torque 61 14 1AZ .

Feed out power distribution box in passenger compartment (3) from retaining clips (4) in direction of arrow.

UNLOCK AND DISCONNECT PLUG CONNECTIONS  behind.

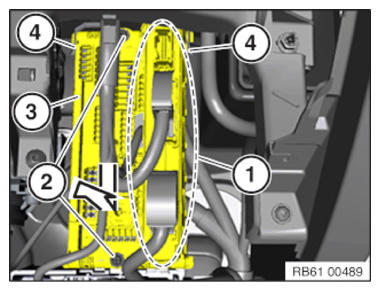

Fig 1: Disconnecting Plug Connection From Power Distribution Box In Passenger Compartment

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

• Modify JUNCTION BOX ELECTRONICS
• Modify fuses
