Bang & Olufsen High End Surround Sound System: Notes
Depending on the vehicle equipment, the audio playback can be optimized using the Bang & Olufsen High End Surround Sound System.
In addition to the "Bang & Olufsen" labelling on the speaker covers, this system has the following identifying features:
- Extendible dashboard speaker
- Illuminated speaker cover
- "Bang & Olufsen" menu item in the Central Information Display (CID)
The advantages and particular features of the vehicle equipment with the Bang & Olufsen High End Surround Sound System are:
- Linear playback
- Pulse response
- Low distortion
- High volume level
- Automatic volume control and tone setting

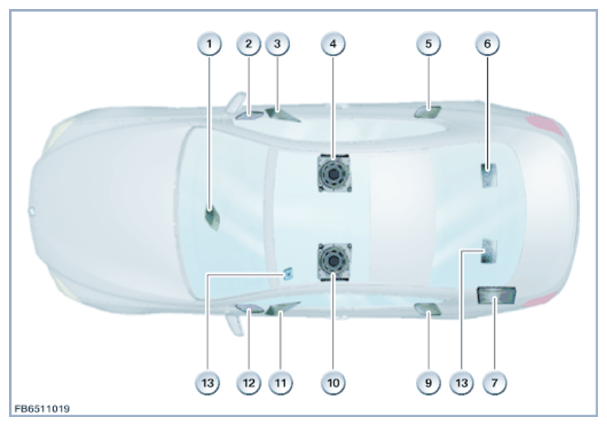

The following describes the Bang & Olufsen High End Surround Sound System using the example of F13.
| Item | Explanation |
|---|---|
| 1 | Extendible dashboard speaker |
| 2 | Tweeter, front door, right |
| 3 | Mid-range speaker, front door, right |
| 4 | Bass speaker, front right |
| 5 | Rear right surround speaker |
| 6 | Rear speaker, right storage shelf |
| 7 | High End audio amplifier (AMPT) |
| 8 | Rear speaker, left storage shelf |
| 9 | Rear left surround speaker |
| 10 | Bass speaker, front left |
| 11 | Mid-range speaker, front door, left |
| 12 | Tweeter, front door, left |
| 13 | Microphone |
