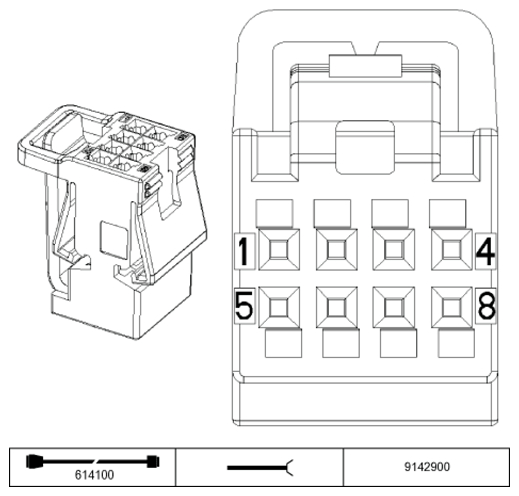

Driver's Seat Module A93*8B Connector End View
Courtesy of BMW OF NORTH AMERICA, INC. Pin Assignments At Plug Connector A93*8B
| Pin |
Type |
Description /Signal type |
Connection /Measuring information |
| 1 |
-- |
Not used |
|
| 2 |
-- |
Not used |
|
| 3 |
-- |
Not used |
|
| 4 |
-- |
Not used |
|
| 5 |
-- |
Not used |
|
| 6 |
-- |
Not used |
|
| 7 |
-- |
Not used |
|
| 8 |
-- |
Not used |
|
