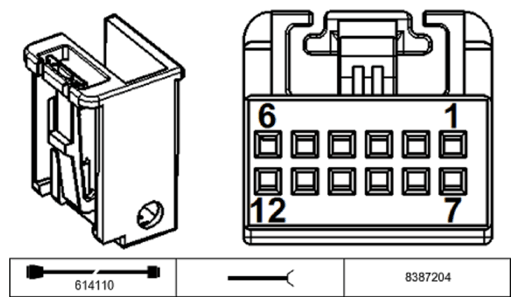

Driver's Seat Module A93*7B Connector End View
Pin Assignments At Plug Connector A93*7B
| Pin | Type | Description /Signal type | Connection /Measuring information |
|---|---|---|---|
| 1 | -- | Not used | |
| 2 | -- | Not used | |
| 3 | E | Ground Drive for driver's seat lumbar support | Drive for driver's seat lumbar support |
| 4 | A | Voltage supply Drive for driver's seat lumbar support | Drive for driver's seat lumbar support |
| 5 | E | Ground Valve block, driver's lumbar support | Valve block, driver's lumbar support |
| 6 | A | Lumbar support activation | Valve block, driver's lumbar support |
| 7 | -- | Not used | |
| 8 | -- | Not used | |
| 9 | -- | Not used | |
| 10 | A | Lumbar support activation | Valve block, driver's lumbar support |
| 11 | A | Lumbar support activation | Valve block, driver's lumbar support |
| 12 | A | Lumbar support activation | Valve block, driver's lumbar support |
