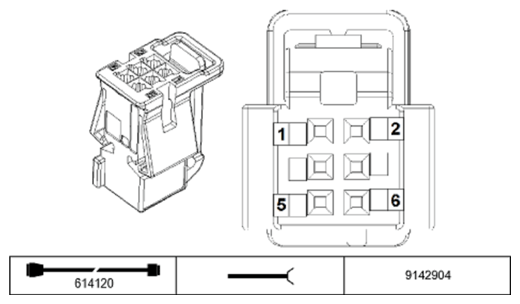

Driver's Seat Module A93*6B Connector End View
Pin Assignments At Plug Connector A93*6B
| Pin | Type | Description /Signal type | Connection /Measuring information |
|---|---|---|---|
| 1 | M | Ground Fan, seat | Fan, seat |
| 2 | M | Ground Fan, backrest | Fan, backrest |
| 3 | A | Voltage supply Fan, seat | Fan, seat |
| 4 | A | Voltage supply Fan, backrest | Fan, backrest |
| 5 | A | Activation Fan, backrest | Fan, backrest |
| 6 | A | Activation Fan, seat | Fan, seat |
