Structure and inner electrical connection

The oil pressure control valve is connected via a 2-pin plug connection.

The oil pressure control valve is closed when de-energized. This means the oil circuit is automatically in the fallback level in the event of failure of the oil pressure control valve and the pressure limiting valve ensures an oil pressure of approx. 5.5 bar. During characteristic map operation, the oil pressure lies between 1.5 and 4.5 bar.

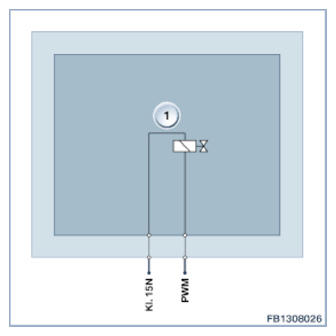

Fig 1: Oil Pressure Regulating Valve - Circuit Diagram

Courtesy of BMW OF NORTH AMERICA, INC.

The oil pressure control valve is connected via a 2-pin plug connection.

The oil pressure control valve is a solenoid valve. The oil pressure control valve is supplied with voltage via terminal 15N. Activation by the engine control occurs on the earth side.

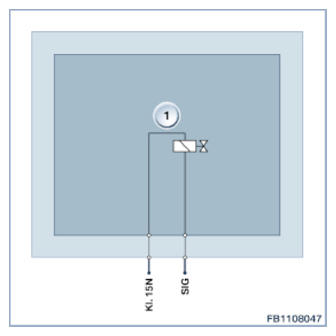

Fig 1: Oil Pressure Regulating Valve - Circuit Diagram

Courtesy of BMW OF NORTH AMERICA, INC.
