Side View Camera Does Not Display Picture (66 08 14)
Publication date: 2014-10-01Reference number: 66 08 14
SIDE VIEW CAMERA DOES NOT DISPLAY PICTURE
TECHNICAL SERVICE BULLETIN
| BMW: | F30 (3 Series Sedan); F31 (3 Series Sports Wagon); F32 (4 Series Coupe); F33 (4 Series Convertible); F34 (4 Series Gran Turismo); F36 (4 Series Gran Coupe); F80 (M4 Series Sedan); F83 (M4 Convertible); F10 (5 Series Sedan); F12 (6 Series Coupe); F13 (6 Series Convertible); F06 (6 Series Gran Coupe); F07 (5 Series Gran Turismo); F01, F02 (7 Series); E70 (X5); With option 5DL (Side and Top view camera); Or; Option 5DK (Side view camera) |
| GROUP: | Distance Systems, Cruise Control, Remote Control |
SUBJECT
Side View Camera Does Not Display Picture
SITUATION
The side view camera does not display a picture:
- After engaging reverse gear
- Activating the side view camera via the switch on the center console near the gear shift
CAUSE
- Water (moisture) entering the cable assembly, causing corrosion on the pins in the connector(s) at the camera(s)
- Poor cable connection to the camera(s)
PROCEDURE

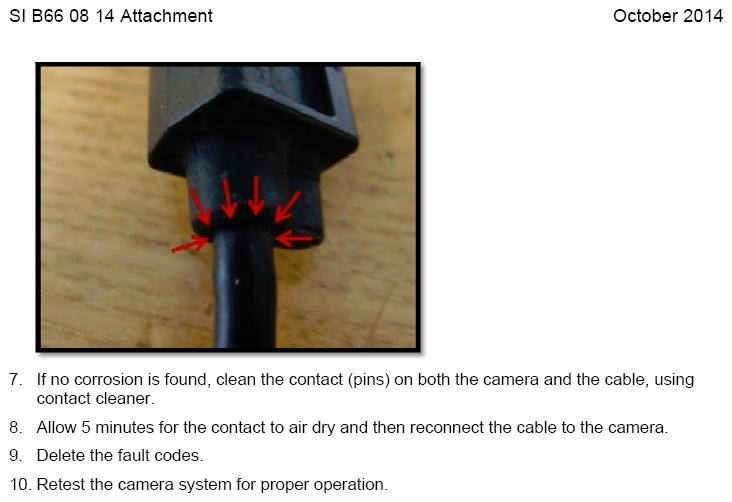

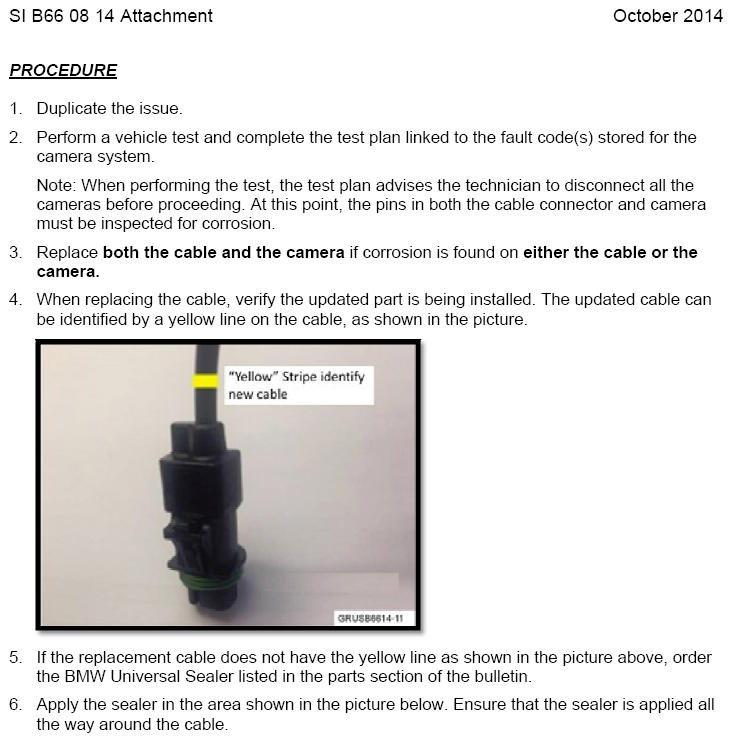

Refer to the attachment to this bulletin.
PARTS INFORMATION
| Part Number | Description | Quantity |
|---|---|---|
| Refer to EPC | Side Camera(s) | As needed |
| 61 11 9 182 329 | Wiring Harness, Side View Camera | As needed |
| 81 22 9 400 339 | BMW Universal Sealer | As needed |
WARRANTY INFORMATION
Covered under the terms of the BMW New Vehicle/SAV Limited Warranty or the BMW Certified Pre-Owned Program.
| Defect Code: | 66 53 05 15 00 |
| Labor Operation: | Labor Allowance: | Description: |
|---|---|---|
| 00 00 006 | Refer to KSD2 | Performing "vehicle test" (with vehicle diagnosis system - checking faults) |
| And: | ||
| 61 21 528 | Refer to KSD2 | Connect an approved battery charger/power supply (indicated in KSD2 as "Charging battery") |
| And, as necessary: | ||
| 61 00 006 | Work Time (WT) | Performing vehicle diagnosis - test module. |
Labor operation code 00 00 006 is a Main labor operation. If you are using a Main labor code for another repair, use the Plus code labor operation 00 00 556 instead.
Even though work time labor operation code 61 00 006 ends in "006," it is not considered a Main labor operation.
Work time (WT) labor operation 61 00 006 requires an individual punch time and an explanation in the claim comments section.
And:
Replacing one camera and one wiring harness on the same side
| Labor Operation: | Labor Allowance: | Description: |
|---|---|---|
| 66 53 533 | Refer to KSD2 | Replacing bumper camera, left or right |
| And: | ||
| 61 99 000 | Work Time (WT) | Work time to replace one wiring harness and one side view camera |
If the bumper panel is already removed for another repair, use the Associated labor operation 66 53 534 instead.
Or:
Replacing both cameras and both wiring harnesses
| Labor Operation: | Labor Allowance: | Description: |
|---|---|---|
| 66 53 538 | Refer to KSD2 | Replacing both side view cameras |
| And: | ||
| 61 99 000 | Work Time (WT) | Work time to replace both wiring harnesses and both side view cameras |
If the bumper panel is already removed for another repair, use the Associated labor operation 66 53 539 instead.
Even though work time labor operation code 61 99 000 ends in "000," it is not considered a Main labor operation.
Work time (WT) labor operation 61 99 000 requires an individual punch time and an explanation in the claim comments section.
Refer to KSD2 for the corresponding flat rate unit (FRU) allowance. Enter the Chassis Number, which consists of the last 7 digits of the Vehicle Identification Number (VIN). Click on the "Search" button, and then enter the applicable flat rate labor operation in the FR code field.
Other Repairs
If performing ISTA diagnostics and related test plans results in other eligible and covered work, claim this work with the applicable defect code and labor operations listed in KSD2.
