32 00... General chassis and suspension definitions

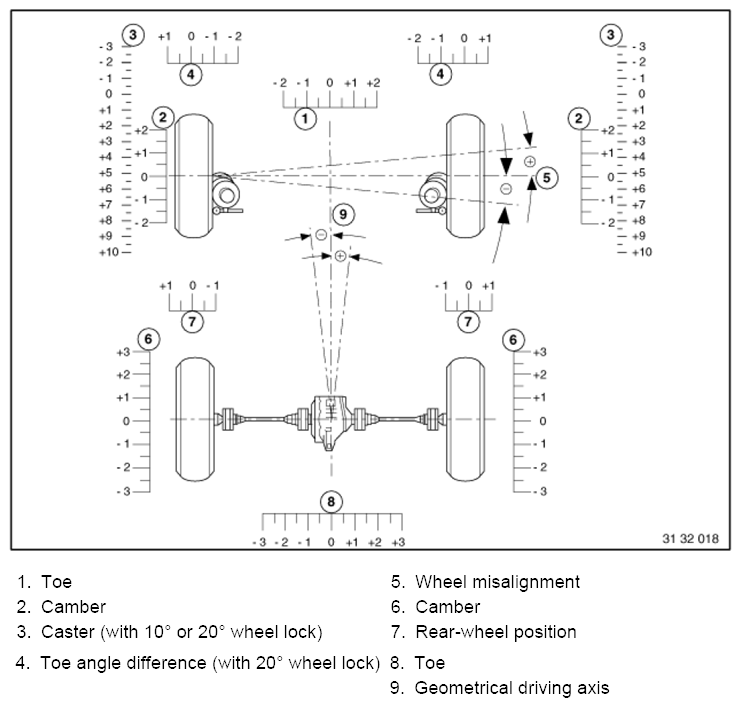

Fig 1: General Chassis And Suspension Definitions Diagram

G06889626

Courtesy of BMW OF NORTH AMERICA, INC.
