99 00... Miscellaneous painting

Follow GENERAL INSTRUCTIONS ON PAINTING .

The graphics are schematic representations and are to be applied to the relevant vehicle type.

Engine compartment, complete

Carry over the area shown symmetrically to the other side of the car.

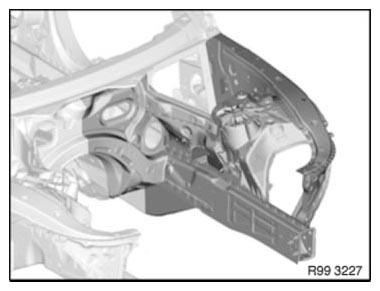

Fig 1: Identifying Engine Compartment Area

G06897783

Courtesy of BMW OF NORTH AMERICA, INC.

Engine bulkhead

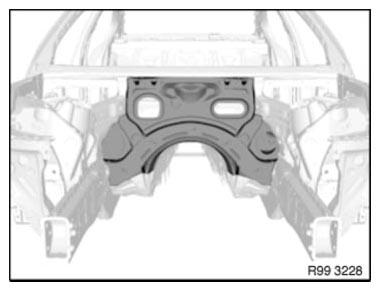

Fig 2: Identifying Engine Bulkhead Area

G06897784

Courtesy of BMW OF NORTH AMERICA, INC.

Engine support (partial replacement before spring strut dome)

Inner side shown

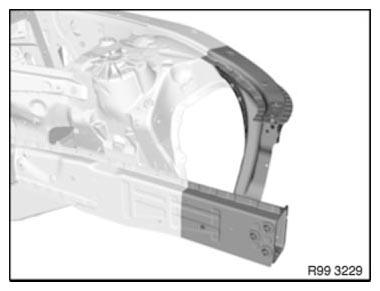

Fig 3: Identifying Engine Support (Inner Side)

G06897785

Courtesy of BMW OF NORTH AMERICA, INC.

Engine support (partial replacement before spring strut dome)

Outer side shown

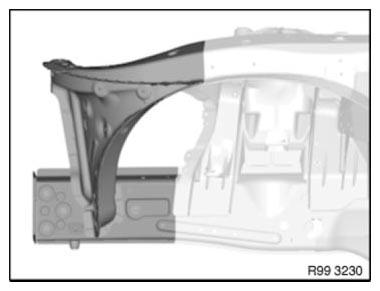

Fig 4: Identifying Engine Support (Outer Side)

G06897786

Courtesy of BMW OF NORTH AMERICA, INC.

Engine support (inside only)

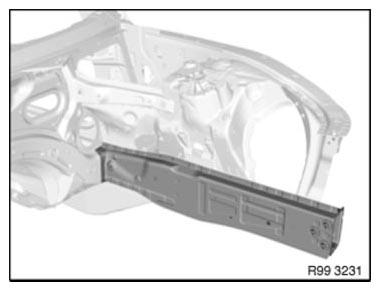

Fig 5: Identifying Engine Support (Inside)

G06897787

Courtesy of BMW OF NORTH AMERICA, INC.

Wheel arch, front, complete

Inner side shown

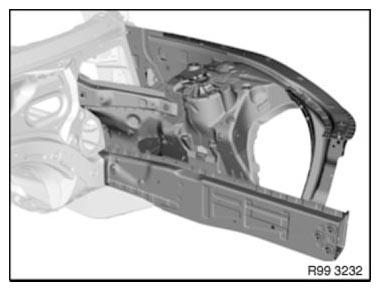

Fig 6: Identifying Wheel Arch (Inner Side)

G06897788

Courtesy of BMW OF NORTH AMERICA, INC.

Wheel arch, front, complete

Outer side shown

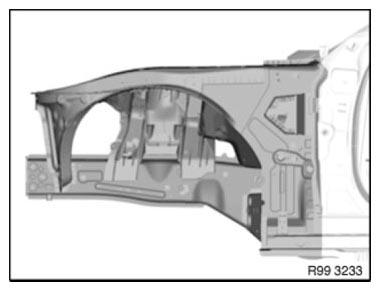

Fig 7: Identifying Wheel Arch (Outer Side)

G06897789

Courtesy of BMW OF NORTH AMERICA, INC.

Luggage compartment floor

Carry over the area shown symmetrically to the other side of the car.

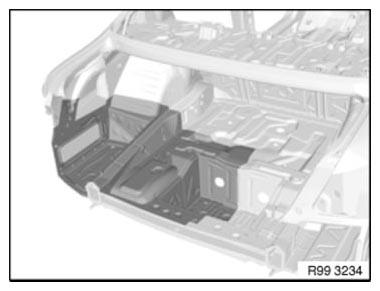

Fig 8: Identifying Luggage Compartment Floor Area

G06897790

Courtesy of BMW OF NORTH AMERICA, INC.
