13 62 594 Removing and installing/replacing pressure sensor on right intake plenum (S63 B44 T 0)

Necessary preliminary tasks:

• Read out DME fault memory.
• Switch off ignition.
• Remove the engine with front axle  . See 31 10 001 COMPLETELY REMOVING AND INSTALLING THE FRONT AXLE WITH ENGINE AND TRANSMISSION (S63T0, MANUAL GEARBOX) or 31 10 001 COMPLETELY REMOVING AND INSTALLING FRONT AXLE WITH ENGINE AND TRANSMISSION (S63T0, DKG) .

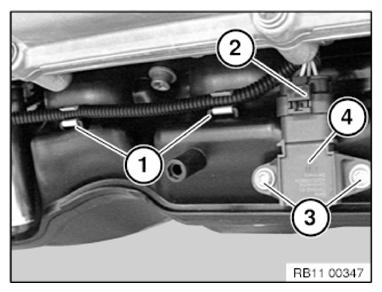

Release wiring harness (1) from clamps.

Disconnect plug connection (2).

Release screws (3).

Tightening torque: 13 62 2AZ

Remove pressure sensor (4).

Installation note:

Replace O-ring.

Installation note:

Delete fault memory.
