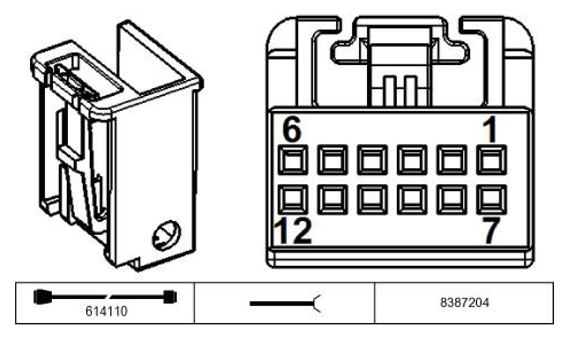

Instrument Cluster Control Unit A71*1B Connector End View
Pin Assignments At Plug Connector A71*1B
| Pin | Type | Description /Signal type | Connection /Measuring information |
|---|---|---|---|
| 1 | E | Power supply, terminal 30B | Fuse F52 |
| 2 | E | Supply, terminal 30 | Fuse F50 |
| 3 | -- | Not used | |
| 4 | E | Signal, temperature sensor | Outside temperature sensor |
| 5 | E | Signal, temperature sensor | Outside temperature sensor |
| 6 | E/A | PT-CAN bus signal | Front Electronic Module |
| 7 | M | Ground | Front Electronic Module |
| 8 | M | Ground | Front Electronic Module |
| 9 | -- | Not used | |
| 10 | A | Voltage supply | Head-Up Display |
| 11 | E | Wake-up signal, terminal 15 | Front Electronic Module |
| 12 | E/A | PT-CAN bus signal | Front Electronic Module |
