NAV Road Map Installation Using USB Stick (65 10 15)

Publication date: 2015-10-01
Reference number: 65 10 15

NAV ROAD MAP INSTALLATION USING USB STICK

TECHNICAL SERVICE BULLETIN

Reference Number(s): SI B65 10 15, Date of Issue: October 2015

BMW:

F01 (7 Series Sedan), F02 (7 Series Sedan LWB), F04 (ActiveHybrid 7), F06 (6 Series Gran Coupe), F07 (5 Series Gran Turismo), F10 (5 Series Sedan), F10H (ActiveHybrid 5), F12 (6 Series Convertible), F13 (6 Series Coupe), F15 (X5), F16 (X6), F22 (2 Series Coupe), F23 (2 Series Convertible), F25 (X3), F26 (X4), F30 (3 Series Sedan), F30H (ActiveHybrid 3), F31 (3 Series Sports Wagon), F32 (4 Series Coupe), F33 (4 Series Convertible), F34 (3 Series Gran Turismo), F36 (4 Series Gran Coupe), F80 (M3 Sedan), F82 (M4 Coupe), F83 (M4 Convertible), F85 (X5 M), F86 (X6 M), I01 (i3), I12 (i8); With option 609 (Professional Navigation, Headunit High (NBT)); (NOTE - This procedure cannot be used for vehicles equipped with CIC Navigation.)

GROUP:

Audio, Navigation, Monitors, Alarms, SRS

Superceded Bulletin(s): SI B65 10 15, Date of Issue: July 2015

This Service Information bulletin supersedes SI B65 10 15 dated July 2015.

SUBJECT

NAV Road Map Installation Using USB Stick

INFORMATION

The Navigation road map can be installed onto the head unit in the vehicle using a USB stick connected to the USB connector in the center console in the vehicle.

64GB USB stick is necessary
Desired NAV road map version can be retrieved from the HDD-Update console procedure.

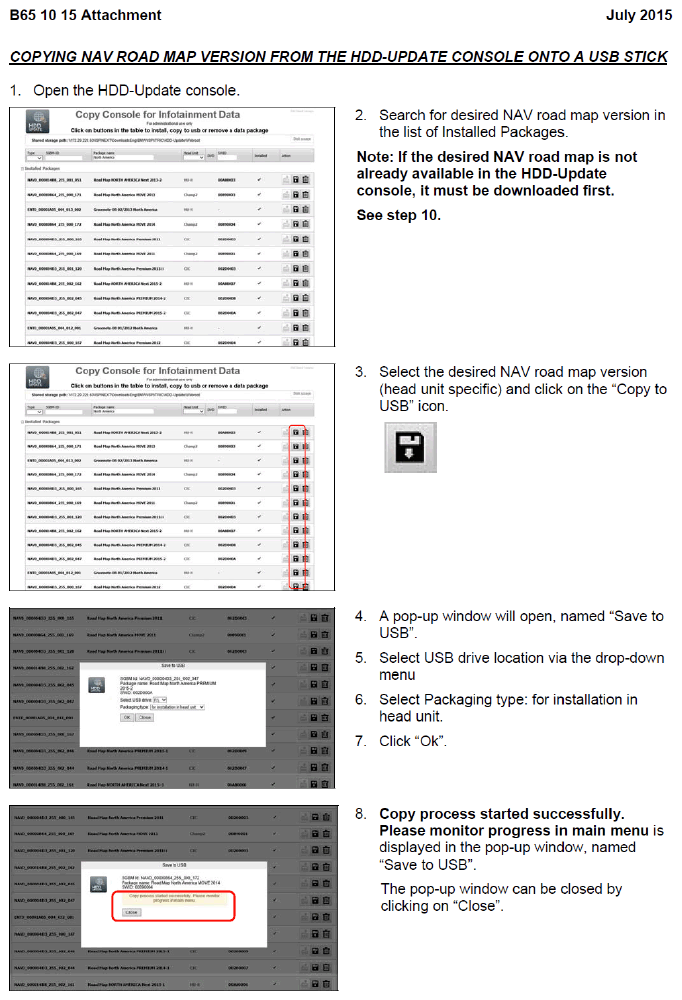

Copy the desired NAV road map from the HDD-Update console onto a 32GB USB stick.

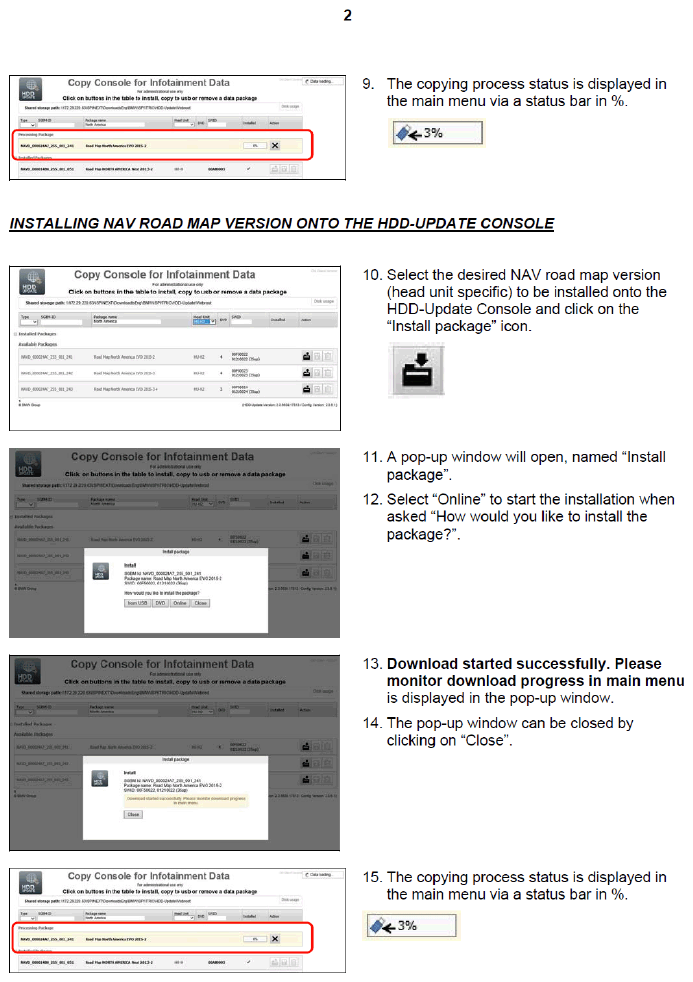

Refer to Attachment.
To install the desired NAV road map version into the vehicle, connect the USB stick into the USB connector in the center console in the vehicle.

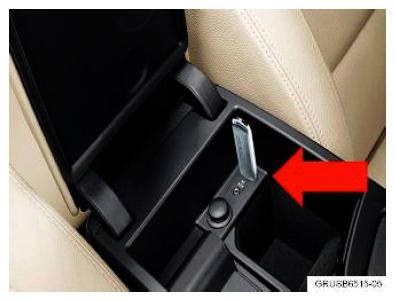

Picture (example) shows the location of the USB connector in the center console (arm rest).

NOTE: The location of the USB connector can differ, depending on the model of the vehicle.
Switch on ignition to KL15
When prompted, enter the 20-digit enabling code.
Start the NAV road map installation and follow the on-screen instructions.

WARRANTY INFORMATION

Not applicable.

ATTACHMENTS

B651015_Attachment
