BLUETOOTH Software (KISU Data) Update (84 05 14)
Publication date: 2015-03-01Reference number: 84 05 14
BLUETOOTH SOFTWARE (KISU DATA) UPDATE
TECHNICAL SERVICE BULLETIN
Reference Number(s): SI B84 05 14, Date of Issue:
March 2015
Superceded Bulletin(s): SI B84 05 14, Date of Issue:
December 2014
| BMW: | E89 (Z4), E84 (X1), F06 (6 Series Gran Coupe), F07 (5 Series Gran Turismo), F22 (2 Series Coupe), F23 (2 Series Convertible), F30 (3 Series Sedan), F30H (ActiveHybrid 3), F31 (3 Series Sports Wagon), F32 (4 Series Coupe), F33 (4 Series Convertible), F34 (3 Series Gran Turismo), F36 (4 Series Gran Coupe), F10 (5 Series Sedan), F10H (ActiveHybrid 5), F12 (6 Series Coupe), F13 (6 Series Convertible), F01 (7 Series Sedan), F02 (7 Series Sedan LWB), F02H (ActiveHybrid 7), F15 (X5), F16 (X6), F25 (X3), F26 (X4), F80 (M3 Sedan), F82 (M4 Coupe), F83 (M4 Convertible), I01 (i3 BEV), I01 (i3 REx), I12 (i8); Produced from July 1, 2014; With option 609 (HU-H) OR COMBOX option 6VB (CMedia) |
| GROUP: | Communication Systems |
This Service Information bulletin supersedes SI B84 05 14 dated December 2014.
SUBJECT
Bluetooth Software (KISU Data) Update
SITUATION
One or both of the situations listed below may be encountered:
- Android device connection stability (dropped calls)
- Third-Party App Metadata: The album art and song title do not update when streaming audio from Pandora or Spotify, etc.
New KISU (Customer Initiated Software Update) software is available on the TIS website.
This software improves the Bluetooth functionality in our vehicles, and it helps to keep us up-to-date with technology innovation.
CAUSE
-
CORRECTION
Update the Bluetooth software.
NOTE:
This requires a USB stick to download the software. These must be purchased locally and will be reimbursed with a onetime sublet amount as listed in the Warranty section.
PROCEDURE

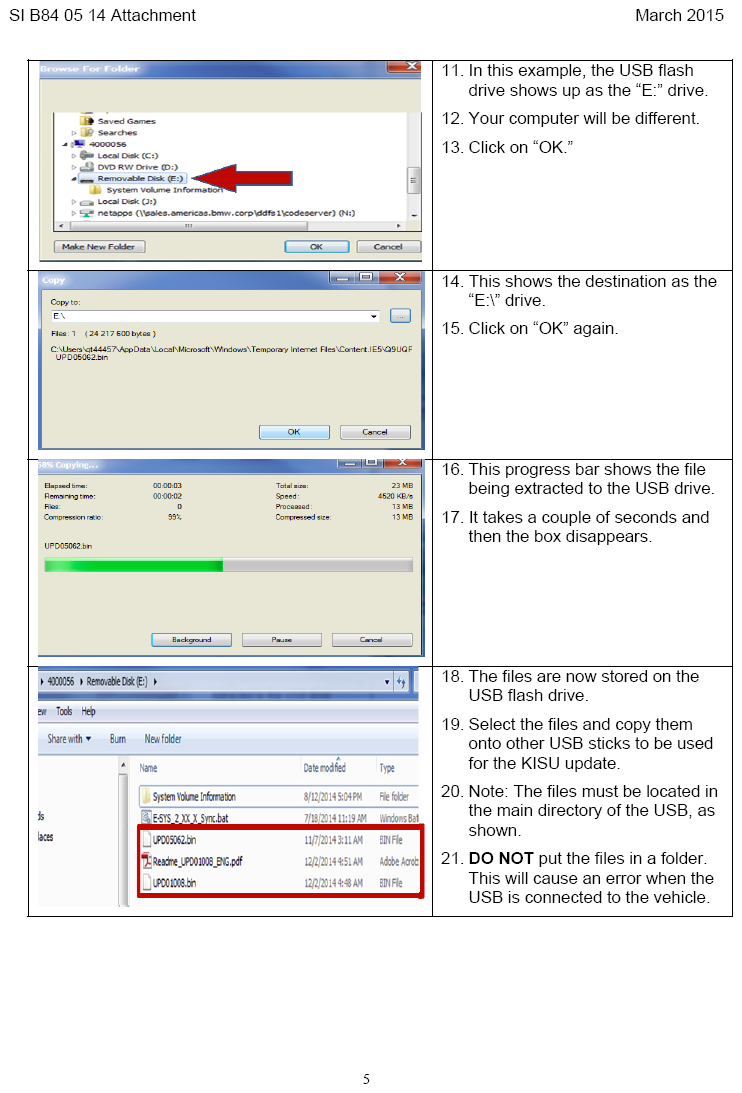

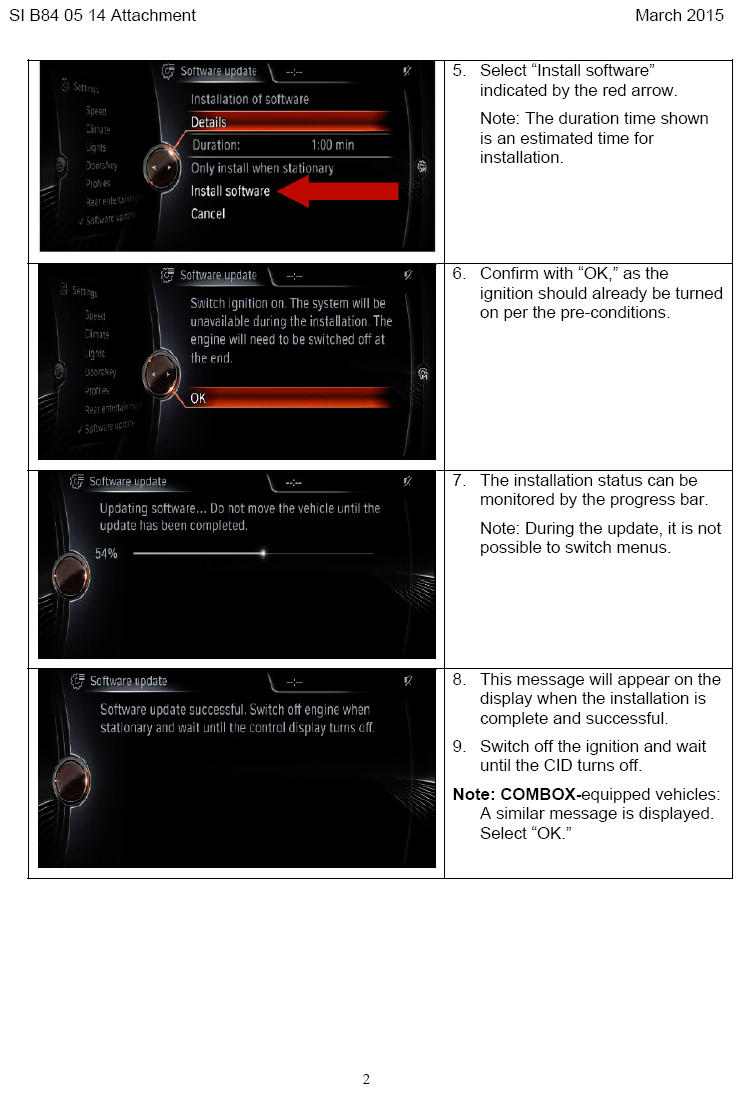

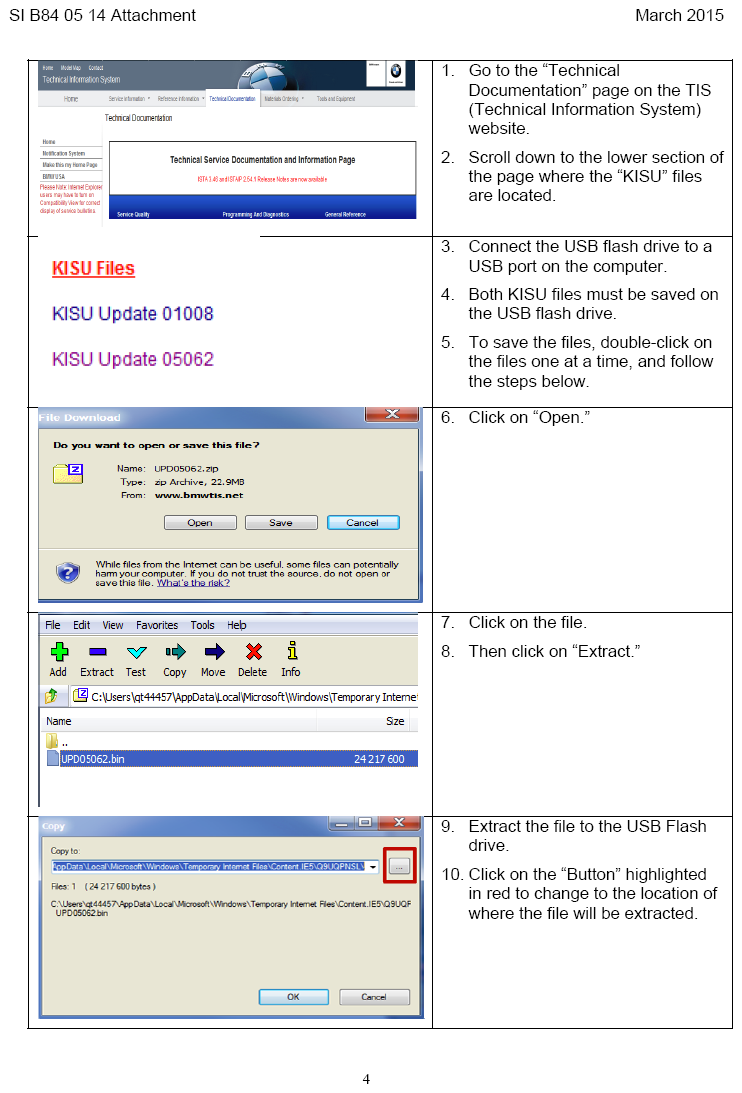

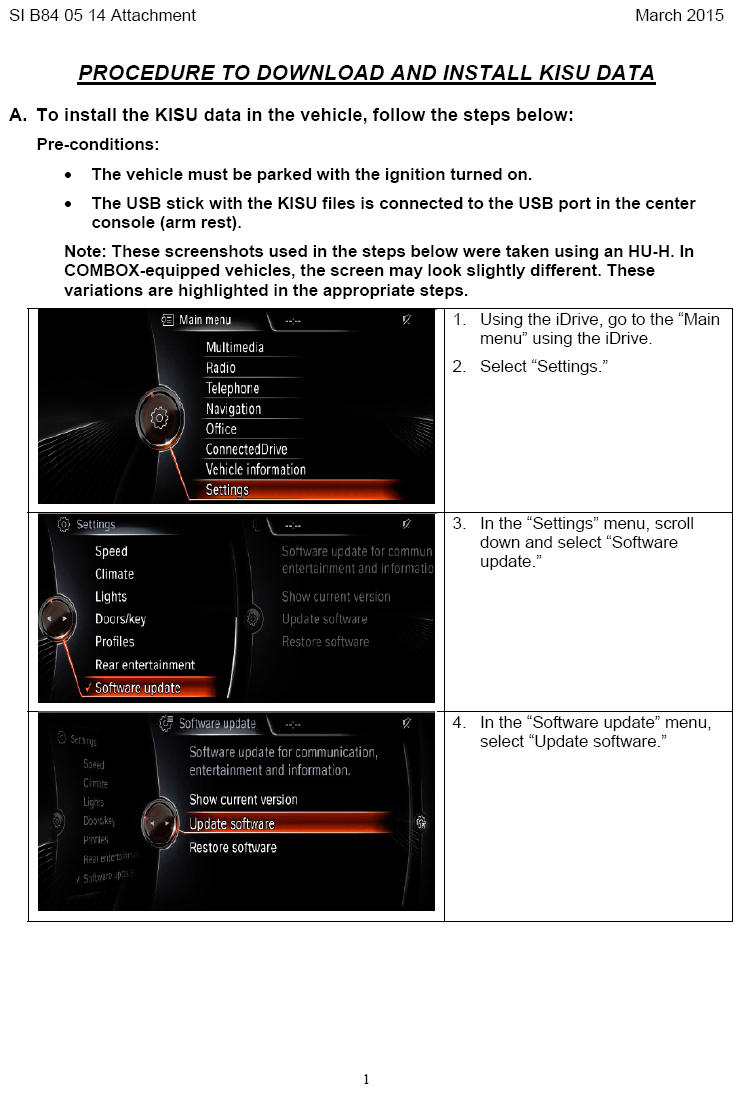

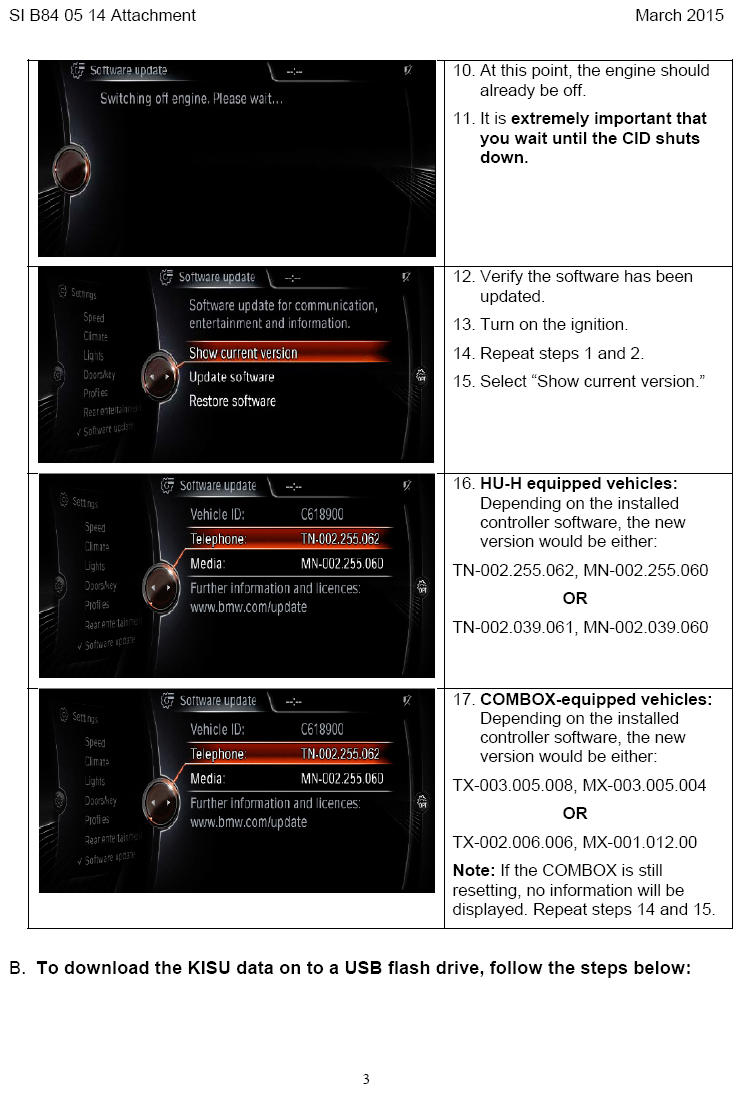

Refer to the attached file in the attachment section of this bulletin.
WARRANTY INFORMATION
Covered under the terms of the BMW New Vehicle/SAV Limited Warranty.
| Defect Code: | 84 11 26 11 00 | Bluetooth telephone function |
| Or: | ||
| 84 11 31 11 00 | Bluetooth audio player function | |
| Labor Operation: | Labor Allowance: | Description: |
|---|---|---|
| 84 99 000 | 3 FRU | Work time to verify the issue and install KISU data (Main work) |
| Or: | ||
| 84 99 000 | 1 FRU | Work time to verify the issue and install KISU data (Plus work - Vehicle already in the workshop) |
