Punch Tool For Front Camera (04 14 15)
Publication date: 2015-04-01Reference number: 04 14 15
PUNCH TOOL FOR FRONT CAMERA
TECHNICAL SERVICE BULLETIN
Reference Number(s): SI B04 14 15, Date of Issue:
April 2015
| BMW: | F15 (X5), F16 (X6), F22 (2 Series Coupe), F23 (2 Series Convertible), F26 (X4), F30 (3 Series Sedan), F30H (ActiveHybrid 3), F31 (3 Series Sports Wagon), F32 (4 Series Coupe), F33 (4 Series Convertible), F85 (X5 M), F86 (X6 M) |
| GROUP: | Tools and Equipment |
SUBJECT
Punch Tool for Front Camera
SITUATION
Distribution of the following tool will be through the Automatic Tool Shipment Program.
Additional tools may be purchased through your Regional Distribution Center (RDC).

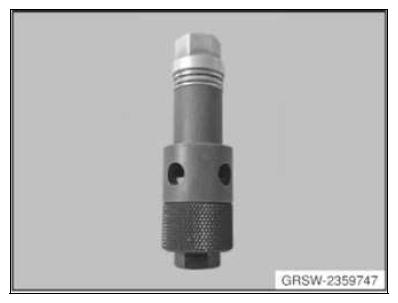

Punch Tool for Front Camera
Order P/N 83 30 2 359 747
- The punch tool (17.6 mm) is used to professionally install the front camera into a replacement front bumper.

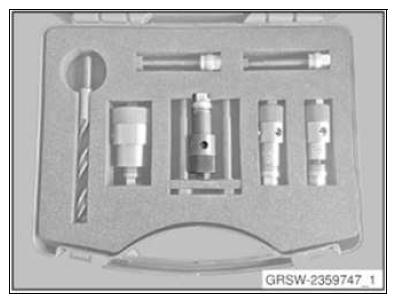

- The punch tool is to be stored in the previously distributed punch tool set case (B 04 14 14 ).
- For complete detailed information on this tool, refer to ISTA Repair Manual section 51 11.....
SPECIAL TOOL WARRANTY
Terms of the Parts department Special Tool Warranty can be viewed and printed by following the path below:
- Go to TIS.
- Select "Tools and Equipment."
- Select "Special Tool Parts Warranty."
