41 61... Checking Hinge For Engine Compartment Lid (For Vehicles With Active Pedestrian Protection System)

Necessary preliminary tasks:

• Remove hinge for engine compartment lid

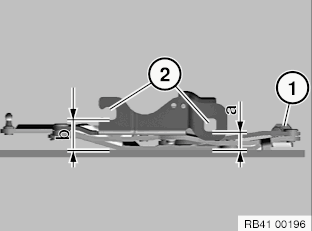

Open and close hinge (1).

Place hinge (1) on a level surface.

Check holes (2) for dimensional accuracy relative to support.

Courtesy of BMW OF NORTH AMERICA, INC.

Dimension a = 21 mm

Measurement b = 33 mm

Test result:

• Hinge is stiff - Replace hinge
• Faulty dimensional accuracy - Replace hinge
