61 35 115 Removing and installing/replacing footwell module

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD PROTECTION) .

Necessary preliminary tasks

Unlock plug connections (1) and disconnect.

Unclip footwell module (2) at points (3).

Carefully pull footwell module (2) out of device holder (4) in direction of arrow.

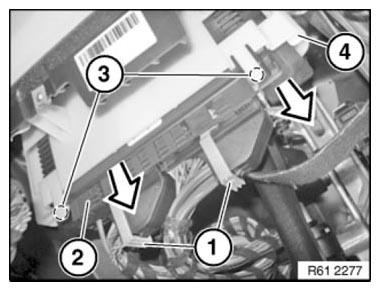

Fig 1: Pulling Footwell Module Out Of Device Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1) and disconnect.

Remove footwell module (2).

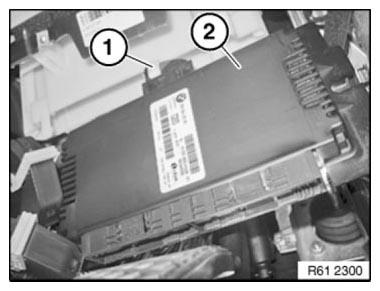

Fig 2: Identifying Plug Connection And Footwell Module

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out vehicle programming/coding.
