61 35 015 Removing and installing (replacing) control unit for Car Access System

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

Necessary preliminary tasks

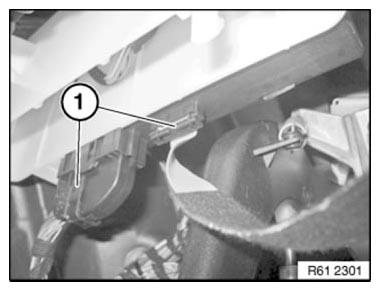

Unlock plug connections (1) and disconnect.

Fig 1: Identifying Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

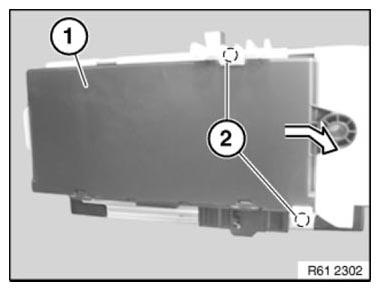

Unlock control unit for Car Access System (1) at points (2).

Remove control unit for Car Access System (1) in direction of arrow.

Fig 2: Removing Control Unit For Car Access System

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

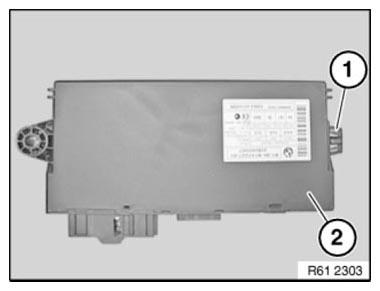

Feed guide (1) of control unit for Car Access System (2) correctly into associated mounting.

Fig 3: Identifying Guide Of Control Unit For Car Access System

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out programming/coding.
