61 31 134 Removing and installing/replacing USB/audio interface connection socket

Necessary preliminary tasks:

Remove rear cover (1) from center console (2) in direction of arrow.

Disconnect plug connection underneath.

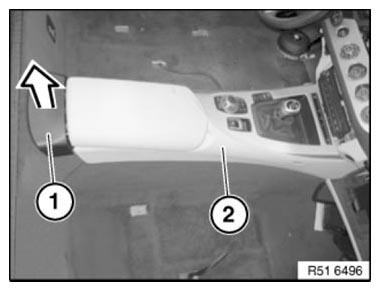

Fig 1: Removing Rear Cover From Centre Console

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew nuts (1).

Release screw (2).

Raise center console (3) a little.

Open center console storage compartment lid (4).

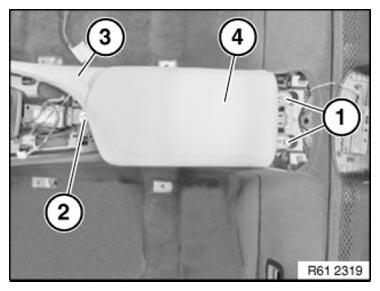

Fig 2: Identifying Centre Console Storage Compartment Lid And Centre Console With Nuts And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Press connection socket (1) outwards out of center console (2).

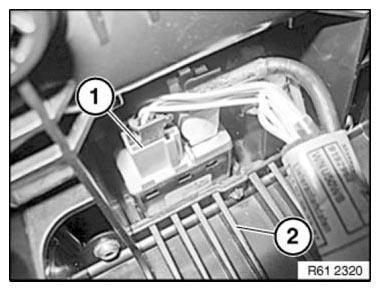

Fig 3: Identifying Connection Socket Of Centre Console

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug connections (1) and disconnect.

Remove connection socket (2).

Installation:

Make sure connection socket (1) is correctly seated in center console (2).

Retaining lugs (3) must not be damaged.

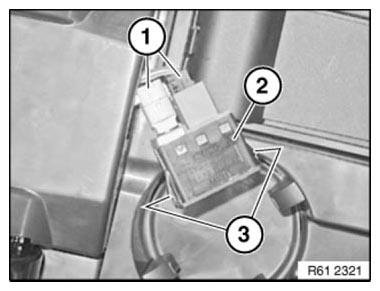

Fig 4: Identifying Plug Connection, Connection Socket With Retaining Lugs

Courtesy of BMW OF NORTH AMERICA, INC.
