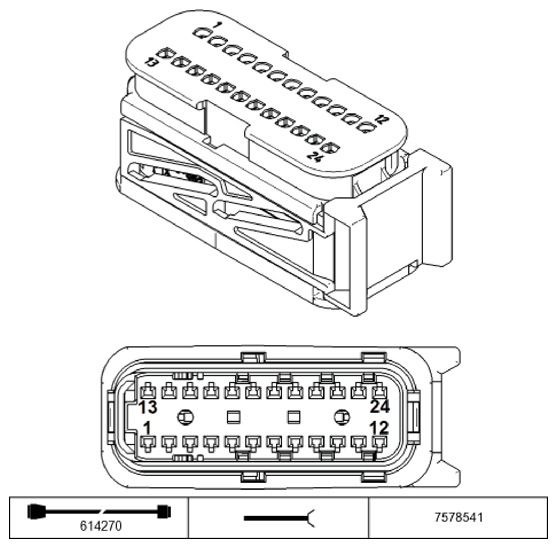

DME Control Module SX60006A Connector End View
Pin Assignments At Plug Connector X60006
| Pin | Type | Description /Signal type | Connection /Measuring notes |
|---|---|---|---|
| 1 | A | Activation Injection system, cylinder 3 | Injection system, cylinder 3 |
| 2 | A | Activation Injection system, cylinder 3 | Injection system, cylinder 3 |
| 3 | A | Activation Injection system, cylinder 4 | Injection system, cylinder 4 |
| 4 | A | Activation Injection system, cylinder 4 | Injection system, cylinder 4 |
| 5 | A | Activation Injection system, cylinder 5 | Injection system, cylinder 5 |
| 6 | A | Activation Injection system, cylinder 5 | Injection system, cylinder 5 |
| 7 | A | Signal Ignition coil, cylinder 1 | Ignition coil, cylinder 1 |
| 8 | A | Signal Ignition coil, cylinder 2 | Ignition coil, cylinder 2 |
| 9 | A | Signal Ignition coil, cylinder 3 | Ignition coil, cylinder 3 |
| 10 | A | Signal Ignition coil, cylinder 4 | Ignition coil, cylinder 4 |
| 11 | A | Signal Ignition coil, cylinder 5 | Ignition coil, cylinder 5 |
| 12 | A | Signal Ignition coil, cylinder 6 | Ignition coil, cylinder 6 |
| 13 | A | Activation Injection system, cylinder 2 | Injection system, cylinder 2 |
| 14 | A | Activation Injection system, cylinder 2 | Injection system, cylinder 2 |
| 15 | A | Activation Injection system, cylinder 1 | Injection system, cylinder 1 |
| 16 | A | Activation Injection system, cylinder 1 | Injection system, cylinder 1 |
| 17 | A | Activation Injector, cylinder 6 | Injector, cylinder 6 |
| 18 | A | Activation Injector, cylinder 6 | Injector, cylinder 6 |
| 19 | A | Signal Ignition coil, cylinder 1 | Ignition coil, cylinder 1 |
| 20 | A | Signal Ignition coil, cylinder 2 | Ignition coil, cylinder 2 |
| 21 | A | Signal Ignition coil, cylinder 3 | Ignition coil, cylinder 3 |
| 22 | A | Signal Ignition coil, cylinder 4 | Ignition coil, cylinder 4 |
| 23 | A | Signal Ignition coil, cylinder 5 | Ignition coil, cylinder 5 |
| 24 | A | Signal Ignition coil, cylinder 6 | Ignition coil, cylinder 6 |
