61 35 107 Removing and installing or box electronics

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD PROTECTION) .

Necessary preliminary tasks:

Clamp off BATTERY NEGATIVE LEAD .
E72 Only: Disconnect Both negative battery cables.
Remove TRIM FOR INSTRUMENT PANEL AT BOTTOM RIGHT .

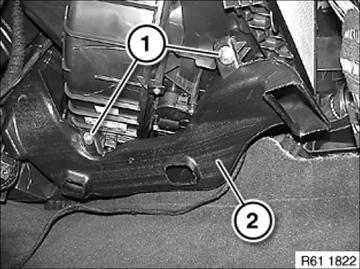

Release screws (1).

Remove air duct (2).

Fig 1: Identifying Air Duct And Screws

G08560874

Courtesy of BMW OF NORTH AMERICA, INC.

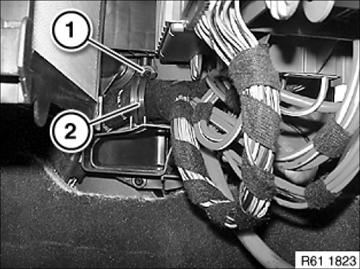

Release screw (1).

Slacken wiring harness in cable holder (2).

Fig 2: Identifying Wiring Harness Cable Holder And Screw

G08560875

Courtesy of BMW OF NORTH AMERICA, INC.

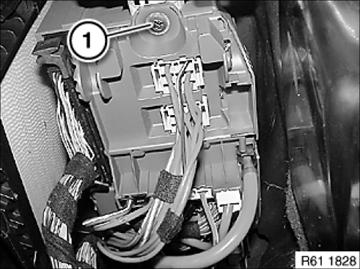

Release screw (1).

Fig 3: Identifying Passenger Compartment Fuse Box Mounting Screw

G08560876

Courtesy of BMW OF NORTH AMERICA, INC.

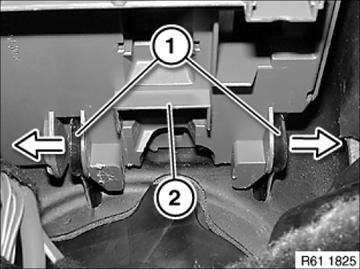

Lever holders (1) at bulkhead out of passenger compartment fuse box (2) in direction of arrow.

Lower passenger compartment fuse box (2).

Fig 4: Removing Fuse Box Bulkhead Holder

G08560877

Courtesy of BMW OF NORTH AMERICA, INC.

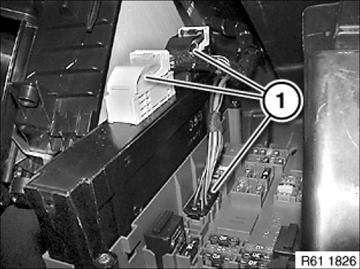

Disconnect plug connection (1).

Fig 5: Identifying Plug Connection

G08560878

Courtesy of BMW OF NORTH AMERICA, INC.

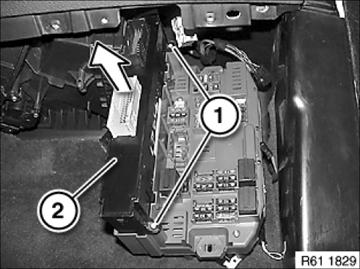

Release screws (1).

Pull junction box electronics (2) in direction of arrow out of passenger compartment fuse box.

Disconnect associated plug connection and remove junction box electronics (2).

Fig 6: Removing Junction Box Electronics

G08560879

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure junction box electronics (2) is correctly seated in passenger compartment fuse box.

Replacement:

Carry out VEHICLE PROGRAMMING/ENCODING .
