61 35 001 Removing and installing trailer module

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD PROTECTION) .

Necessary preliminary tasks:

E70:

Lift back insulating mat.

Disconnect plug connection (1).

Unlock catch (2) and remove trailer module (3) from device carrier (4).

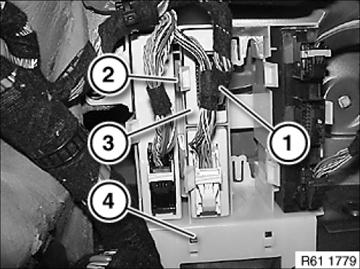

Fig 1: Identifying Trailer Module, Device Carrier, Plug Connection And Catch

Courtesy of BMW OF NORTH AMERICA, INC.
