72 11... Removing And Installing/Replacing Center Lower Strap Fitting For 3rd Seat Row

Necessary preliminary tasks:

• Remove CENTER TRIM .

Release screw (1).

Tightening torque: 72 11 44AZ .

Remove lower strap fitting (2).

Installation:

Lower strap fitting is coded to prevent incorrect installation.

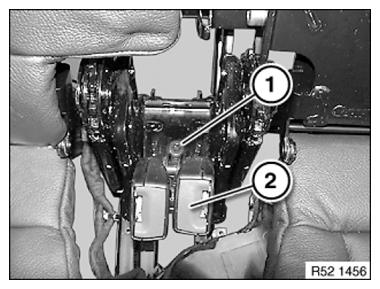

Fig 1: Lower Strap Fitting And Screw

Courtesy of BMW OF NORTH AMERICA, INC.
