72 11... Removing And Installing Sash Guide For 3rd Seat Row On Left Or Right

Necessary preliminary tasks:

• Remove SEAT BELT (REEL) .

Secure sash guide (2) against falling off.

Release screws (1).

Installation:

Replace screws (1).

Tightening torque: 72 11 42AZ .

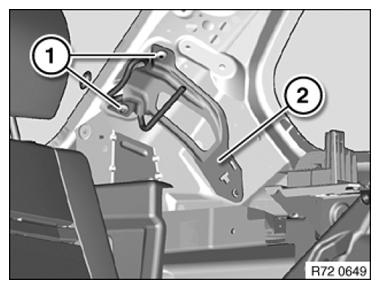

Fig 1: Securing Sash Guide Using Screws

Courtesy of BMW OF NORTH AMERICA, INC.
