12 14 550 Replacing control unit (DME)

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION)

Necessary preliminary tasks:

IMPORTANT: Follow instructions for REMOVING AND INSTALLING CONTROL UNITS

Replacement:

IMPORTANT: It is absolutely essential to read out the fault memory with the MoDiC or the BMW DIS and to create a fault memory printout.

Switch off ignition.

Lever out expanding rivet.

Remove gasket (1).

Unfasten screws (2).

Feed out partition wall (3) and remove.

Fig 1: Identifying Partition Wall, Gasket And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

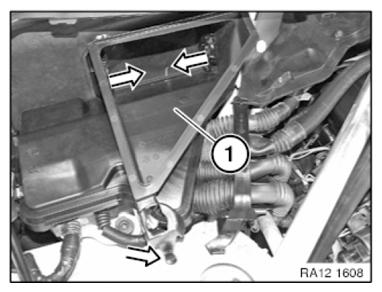

Lever out expanding rivet.

Release locks in direction of arrow.

Feed out clean air duct (1) and remove.

Fig 2: Identifying Fresh-Air Duct

Courtesy of BMW OF NORTH AMERICA, INC.

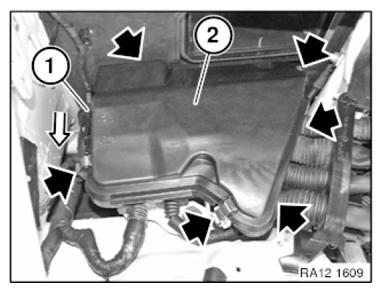

Open retainers.

Release lock (1) in direction of arrow.

Remove cover (2).

Fig 3: Removing Control Unit (DDE) Lock And Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws and remove retaining bar (1).

Unlock upper section (2) of partition seal in direction of arrow and remove.

Release grommets (3) for wiring harnesses from lower section of partition seal and from electronics box.

Installation note:

Make sure grommets are correctly seated (watertightness).

Fig 4: Identifying Retaining Bracket, Upper Section And Grommets

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock connectors (1) using slide in direction of arrow and remove.

Remove control unit (2).

Installation note:

Replacement:

Note device identification number and encoding.

Fig 5: Removing Control Unit

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Check stored fault messages.
Delete fault memory.
