99 00... Separate components/paintwork

Roof

Area specification applies to all paint stages.

Fig 1: Identifying Roof Paintwork Area

Courtesy of BMW OF NORTH AMERICA, INC.

Roof frame, front

Area specification applies to all paint stages.

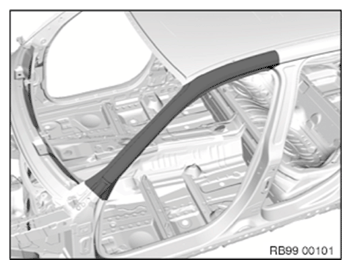

Fig 2: Identifying Front Roof Frame Paintwork Area

Courtesy of BMW OF NORTH AMERICA, INC.

Roof frame

Area specification applies to all paint stages.

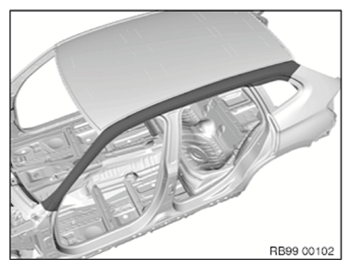

Fig 3: Identifying Roof Frame Paintwork Area

Courtesy of BMW OF NORTH AMERICA, INC.

Tail panel

Area specification applies to all paint stages.

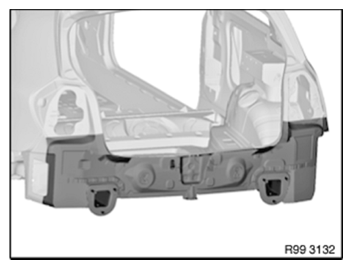

Fig 4: Identifying Tail Panel Paintwork Area

Courtesy of BMW OF NORTH AMERICA, INC.

Front side panel

Area specification applies to all paint stages.

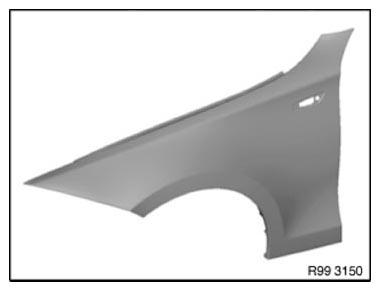

Fig 5: Identifying Front Side Panel Paintwork Area

Courtesy of BMW OF NORTH AMERICA, INC.

Rear side panel (up to roof frame, middle)

Area specification applies to paint stage 1.

Fig 6: Identifying Rear Side Panel Paintwork Area (Up To Roof Frame, Middle)

Courtesy of BMW OF NORTH AMERICA, INC.

Rear side panel (up to roof frame, middle)

Area specification applies to paint stage 3.

Fig 7: Identifying Rear Side Panel Paintwork Area (Up To Roof Frame, Middle)

Courtesy of BMW OF NORTH AMERICA, INC.

Cover for entrance

Area specification applies to all paint stages.

Fig 8: Identifying Entrance Cover Paintwork Area

Courtesy of BMW OF NORTH AMERICA, INC.

Front door

Area specification applies to paint stage 1.

Fig 9: Identifying Front Door Paintwork Area

Courtesy of BMW OF NORTH AMERICA, INC.

Front door

Area specification applies to paint stages 2 and 3.

Fig 10: Identifying Front Door Paintwork Area

Courtesy of BMW OF NORTH AMERICA, INC.

Front door

Additional area specification inner panel for paint stages 2 and 3.

Fig 11: Identifying Front Door Paintwork Area

Courtesy of BMW OF NORTH AMERICA, INC.

Rear door

Area specification applies to paint stage 1.

Fig 12: Identifying Rear Door Paintwork Area

Courtesy of BMW OF NORTH AMERICA, INC.

Rear door

Area specification applies to paint stages 2 and 3.

Fig 13: Identifying Rear Door Paintwork Area

Courtesy of BMW OF NORTH AMERICA, INC.

Rear door

Additional area specification inner panel for paint stages 2 and 3.

Fig 14: Identifying Rear Door Paintwork Area

Courtesy of BMW OF NORTH AMERICA, INC.

Engine compartment lid

Area specification applies to all paint stages.

Additionally complete inner panel for paint stages 2 and 3.

Fig 15: Identifying Engine Compartment Lid Paintwork Area

Courtesy of BMW OF NORTH AMERICA, INC.

Tailgate

Area specification applies to paint stage 1.

Fig 16: Identifying Tailgate Paintwork Area

Courtesy of BMW OF NORTH AMERICA, INC.

Tailgate

Area specification applies to paint stages 2 and 3.

Fig 17: Identifying Tailgate Paintwork Area

Courtesy of BMW OF NORTH AMERICA, INC.

Tailgate

Additional area specification inner panel for paint stages 2 and 3.

Fig 18: Identifying Tailgate Paintwork Area

Courtesy of BMW OF NORTH AMERICA, INC.

Tailgate, top

Area specification applies to paint stage 1.

Fig 19: Identifying Tailgate, Top Paintwork Area

Courtesy of BMW OF NORTH AMERICA, INC.

Tailgate, bottom

Area specification applies to paint stage 1.

Fig 20: Identifying Tailgate, Bottom Paintwork Area

Courtesy of BMW OF NORTH AMERICA, INC.

Center tailgate

Area specification applies to paint stage 1.

Fig 21: Identifying Center Tailgate Paintwork Area

Courtesy of BMW OF NORTH AMERICA, INC.
