99 00... Miscellaneous painting

Inside mirror

Fig 1: Identifying Inside Mirror

Courtesy of BMW OF NORTH AMERICA, INC.

Center door pillar

Area specification applies to all paint stages.

Fig 2: Identifying Center Door Pillar

Courtesy of BMW OF NORTH AMERICA, INC.

Outer door handle

Area specification applies to all paint stages.

Fig 3: Identifying Outer Door Handle Paintwork Area

Courtesy of BMW OF NORTH AMERICA, INC.

Flap for fuel filler neck

Area specification applies to all paint stages.

Additionally with inner plate for paint stages 2 and 3.

Fig 4: Identifying Fuel Filler Neck Flap Paintwork Area

Courtesy of BMW OF NORTH AMERICA, INC.

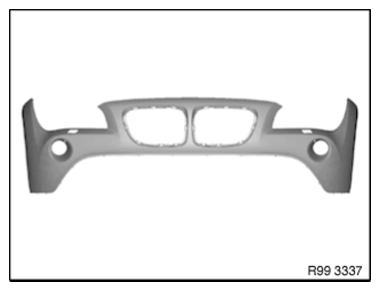

Bumper upper section, front

Area specification applies to all paint stages.

Fig 5: Identifying Front Bumper Upper Section Paintwork Area

Courtesy of BMW OF NORTH AMERICA, INC.

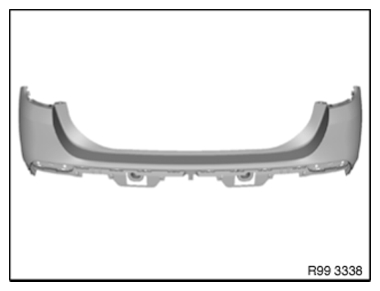

Bumper upper section, rear

Area specification applies to all paint stages.

Fig 6: Identifying Rear Bumper Upper Section Paintwork Area

Courtesy of BMW OF NORTH AMERICA, INC.
