41 00 505 Checking Front Body Structure

Necessary preliminary tasks:

Structural damage can be identified by measuring with a beam trammel.

Here, symmetrically arranged points on the vehicle are measured in diagonal sequence.

If the two measured values are identical, there is no damage to the vehicle.

NOTE: Illustration only an example. Detail deviations, depending on engine version, are possible.

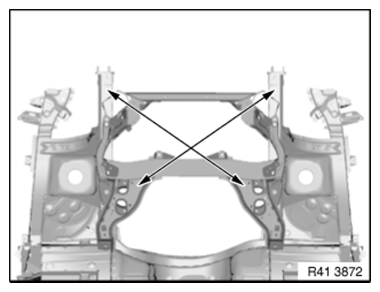

Fig 1: Checking Front Body Structure

Courtesy of BMW OF NORTH AMERICA, INC.

In front area use conical adapter (2) at bore hole (1).

Fig 2: Identifying Conical Adapter And Bore Hole

Courtesy of BMW OF NORTH AMERICA, INC.

Use 8 mm dia. bore hole (1) on front axle support.

Fig 3: Identifying Bore Hole On Front Axle Support

Courtesy of BMW OF NORTH AMERICA, INC.
