72 12... Overview of airbag modules, airbag control unit, belt tensioners

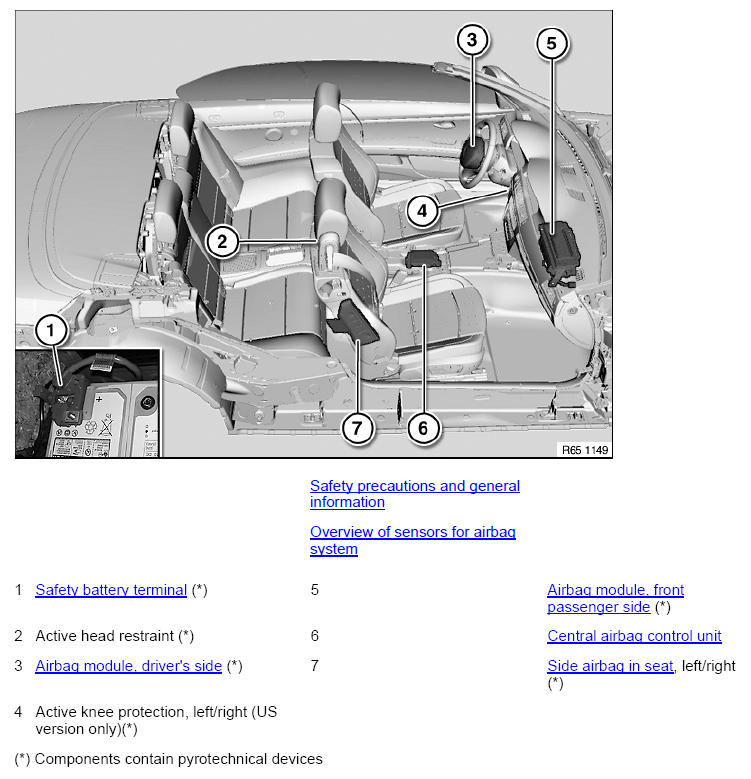

Fig 1: Overview Of Airbag Modules, Airbag Control Unit, Belt Tensioners

G09896471

Courtesy of BMW OF NORTH AMERICA, INC.
