Functional networking

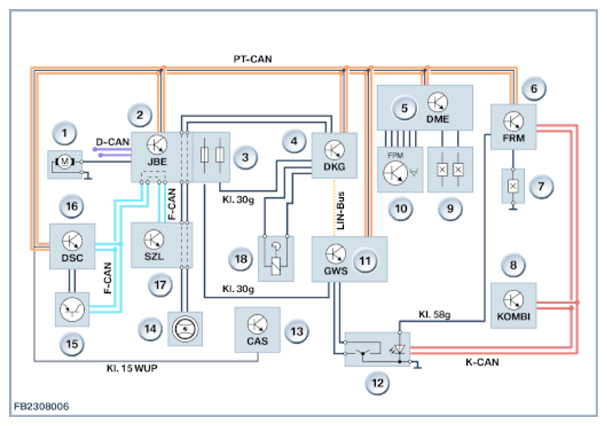

A complex system network with distributed functions in other control units is necessary for implementation of the transmission functions. The DKG control unit is connected across data bus with these other control units.
| Index | Explanation |
|---|---|
| 1 | Auxiliary water pump |
| 2 | Junction box electronics (JBE) in the junction box |
| 3 | Power distributor in junction box |
| 4 | DKG control unit |
| 5 | Digital engine electronics (DME) |
| 6 | Footwell module (FRM) |
| 7 | Driver's side door contact |
| 8 | Instrument cluster (KOMBI) |
| 9 | Brake light switch |
| 10 | Accelerator pedal module |
| 11 | Gear selector switch (GWS) |
| 12 | Program switch for "Drivelogic" |
| 13 | Car Access System (CAS) |
| 14 | Shift paddles on steering wheel |
| 15 | DSC sensor |
| 16 | Dynamic Stability Control (DSC) |
| 17 | Steering column switch cluster (SZL) |
| 18 | Solenoid for the parking lock |
| D-CAN | Diagnosis-on-CAN |
| F-CAN | Chassis CAN |
| K-CAN | Body CAN |
| Terminal 15 WUP | Wake-up line (terminal 15 wake up) |
| Kl. 30g | Terminal 30 switched |
| Terminal 58g | Terminal 58g, locator lighting |
| PT-CAN | Powertrain CAN |
