IBOC system network

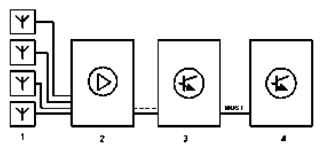

The graphic shows the receiver with the digital tuner US.

  1. AM/FM aerials
  2. Aerial amplifier
  3. Digital tuner US (if separate IBOC control unit is installed)
  4. Headunit
    Fig 1: IBOC System Diagram
    G09895305Courtesy of BMW OF NORTH AMERICA, INC.
