Folding Central Information Display (CID)

IMPORTANT: Pay attention to the cable routing on the housing of the CID.

To ensure perfect opening and closing, the mounting must provide correct cable routing.

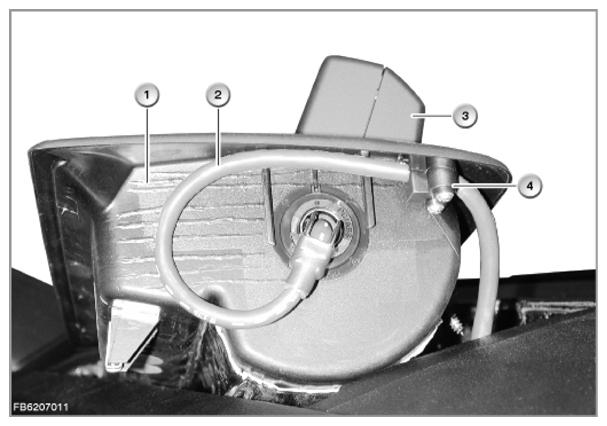

Fig 1: Identifying Central Information Display, Housing, Cable Routing, Mounting

Courtesy of BMW OF NORTH AMERICA, INC.

Central Information Display folded out

Index	Explanation
1	Housing
2	Cable routing
3	Central Information Display (CID)
4	Mounting

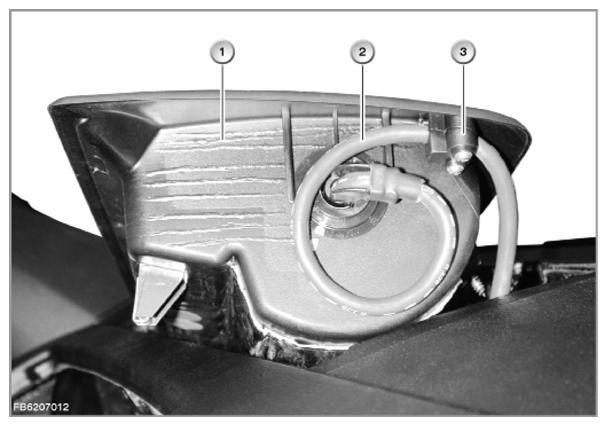

Fig 2: Identifying Housing, Cable Routing, Mounting

Courtesy of BMW OF NORTH AMERICA, INC.

Central Information Display folded in
