FRM: Footwell module

The footwell module (FRM) controls all the exterior light functions. The footwell module is connected to the vehicle with 3 plug connections. Two 51-pin connector connect the main wiring harness. Another 26-pin connector is for the connection to the dashboard.

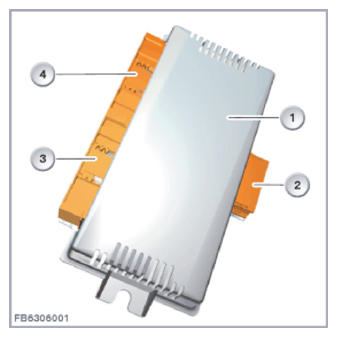

Fig 1: Identifying Footwell Module Components

Courtesy of BMW OF NORTH AMERICA, INC.

The lighting function are integrated in the footwell module (FRM). These lighting function are:

• Side lights
• High-beam headlight
• Headlight flasher
• Turn indicator
• Hazard warning flashers
• Brake light
• Low-beam headlights
• Reversing lights
• Fog lights
• Rear fog light
• Parking light
• Number-plate light
• Headlight courtesy delay feature
• Adaptive headlight with cornering light
• Daytime driving lights
• Welcome lights
