Check Control messages
In certain situations, it is not possible to open or close the hardtop. The corresponding messages are displayed in the instrument panel as Check Control messages. On vehicles with a Central Information Display (CID), the short text and supplementary information are displayed.
The Check Control messages serve to explain in closer detail the red LED on the button which lights up in the event of a fault. A Check Control message is displayed every 5 seconds.

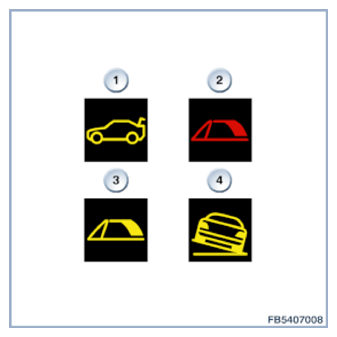

| No. | Color | ID | Check Control message | Supplementary information |
|---|---|---|---|---|
| 1 | yellow | 19 | Boot open! | |
| 2 | Red | 401 | Roof mechanism function failure! | Roof mechanism No roof movement possible. If the soft hardtop is not locked, contact the nearest BMW Service. |
| 447 | Roof mechanism! | Roof mechanism Roof movement not completed. Please check whether roof movement is blocked. Then press button again. |
||
| 558 | Roof control failure! | Roof control Roof position and interlock cannot be detected. If the roof locks safely, trip can be continued. For information on checking the interlock, see Owner's Handbook. |
||
| 562 | Roof not locked! | Roof Roof not locked. First open or close the roof completely, then continue driving. |
||
| 3 | yellow | 416 | Luggage-compartment partition! | Luggage compartment partition No roof movement possible. Move the luggage compartment partition to the position required, Refer to Owner's Handbook. |
| 432 | Roof drive overheating! | Roof mechanism Roof drive overheating. Temporarily only closing function available. |
||
| 516 | No roof operation possible! | Roof Roof operation only possible with vehicle at a standstill. |
||
| 519 | No roof operation possible! | Roof mechanism Operation of roof functions is temporarily suspended. Causes, see Owner's Handbook. |
||
| 561 | Roof! Emergency operation | Roof Roof not locked. First open or close the roof completely, then continue driving. |
||
| 4 | yellow | 445 | Vehicle not standing on level surface! | Roof mechanism Vehicle not standing on level surface! No roof movement possible. |
